SAIK – Firefighter box
Other cabinets and storage types → FULL OFFER
Dedicated external storage for the master key
FUNCTIONALITY AND APPLICATION / SPECIFICATION / GALLERY / CONTACT |

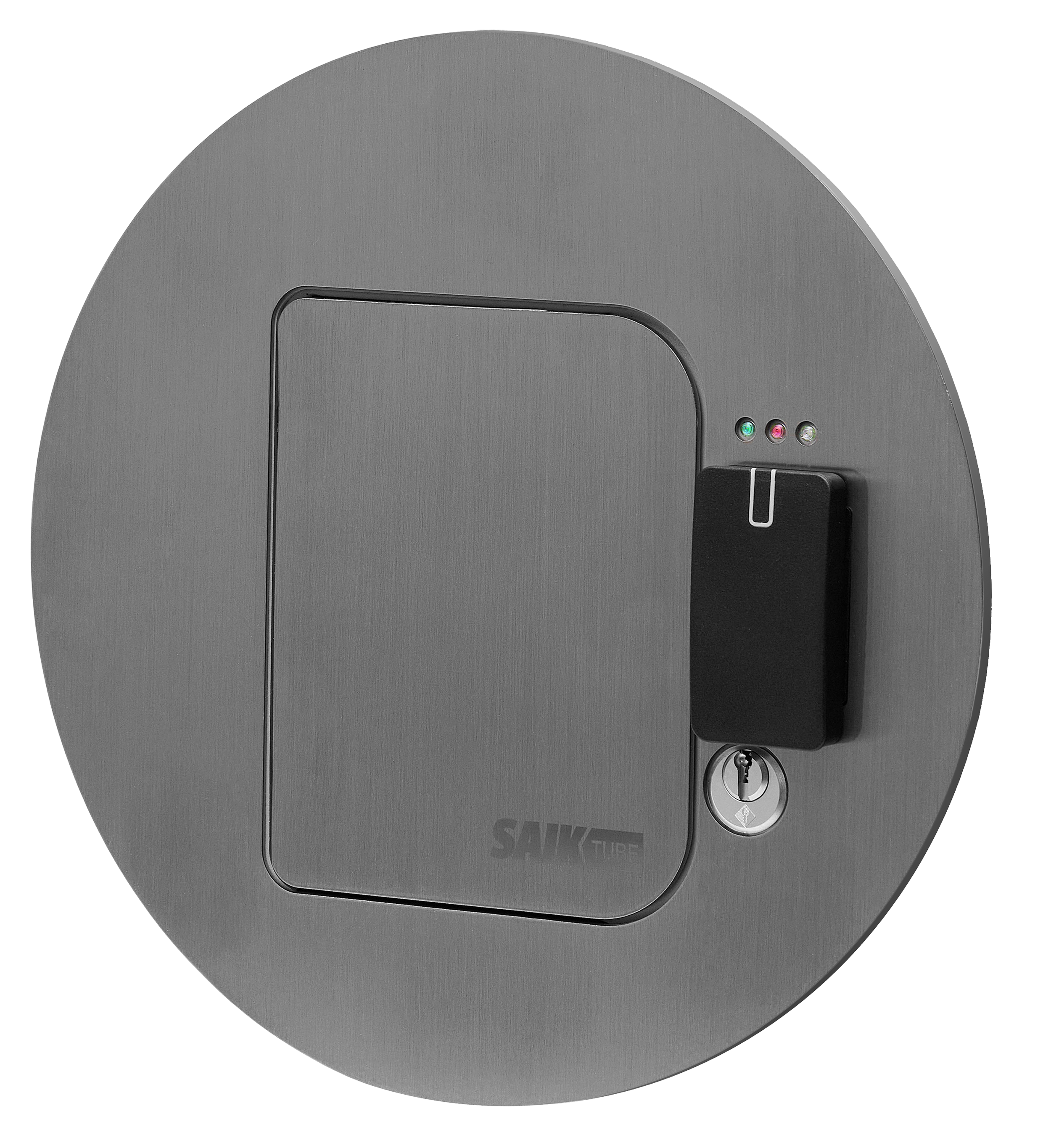

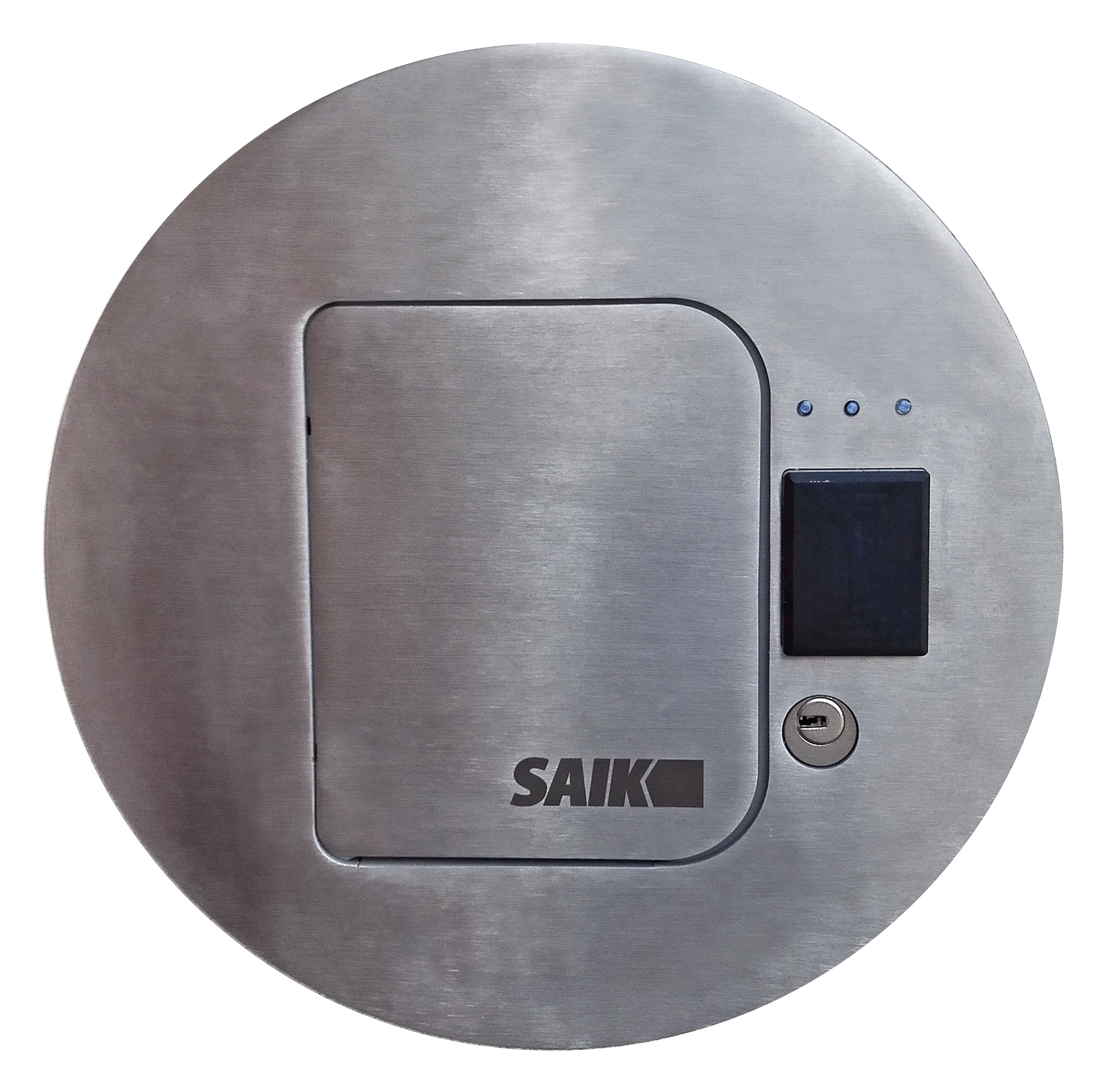

Solid and durable construction and functionality
• Aesthetically pleasing design that won’t attract attention from bystanders.
• Reinforced steel construction for protection
• Reinforced steel key fob.
• The device is manufactured to RC3 burglary resistance class.
• When combined with an alarm system, it ensures building security.
• Double protection for key access, double door, protected by a card reader and numeric keypad.
• Remote opening option.
• Weather and dust resistant.
• Flush-mounted externally, on the building’s exterior façade, or on a dedicated pedestal.
• Color customization and logo application available
Secure storage
of the master key
HIGH QUALITY PRODUCTION
CERTIFIED SECURITY LEVEL
Anyone interested in purchasing or with additional questions is welcome to contact us via the contact form (at the bottom of the page),
by email at handlowy@bte.pl, or directly by phone at +48 12 429 36 16. A demonstration of the SAIK TUBE device
and other SAIK solutions for secure key and item storage is also available after prior contact and appointment.
FUNCTIONALITY AND APPLICATION

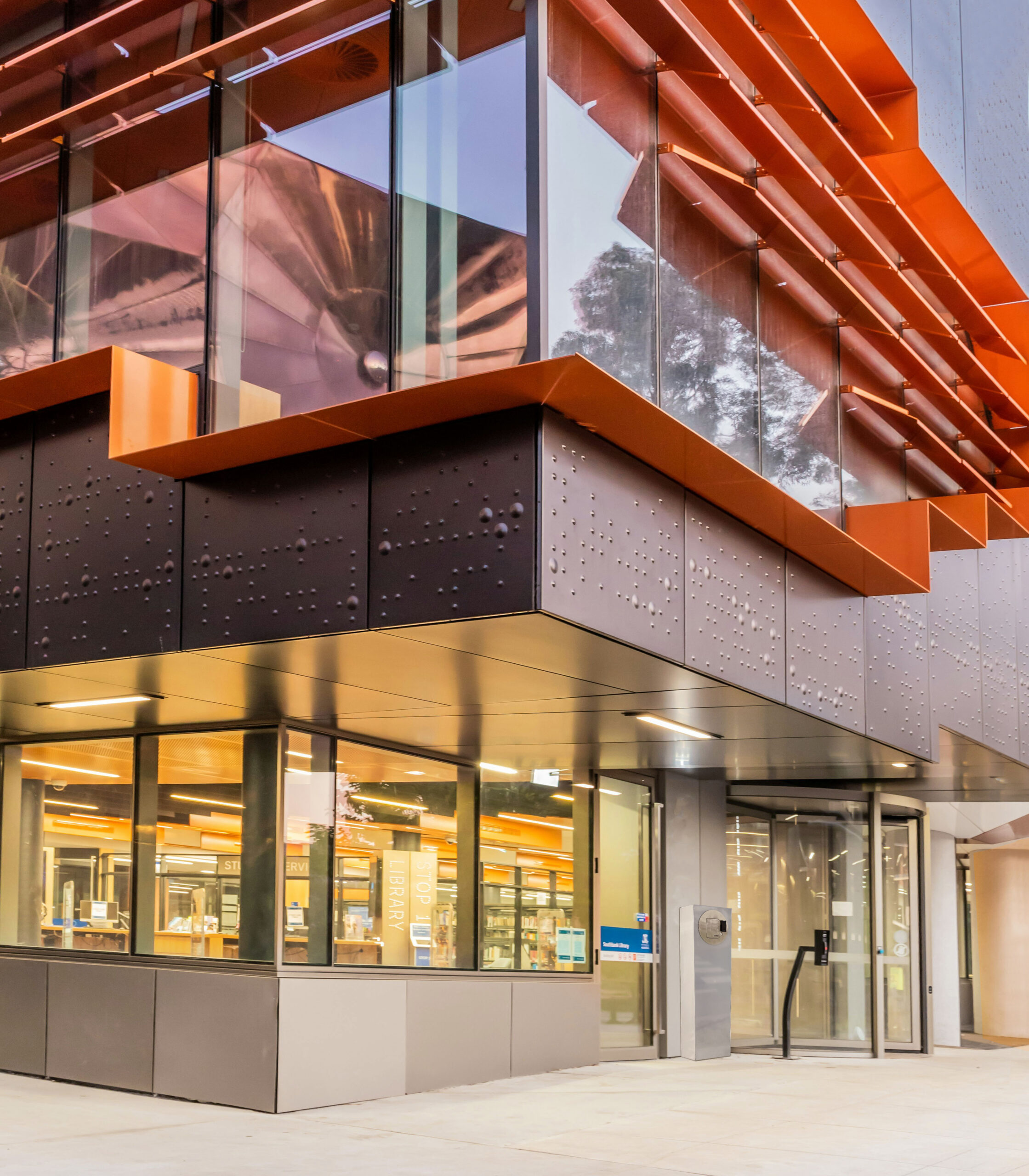

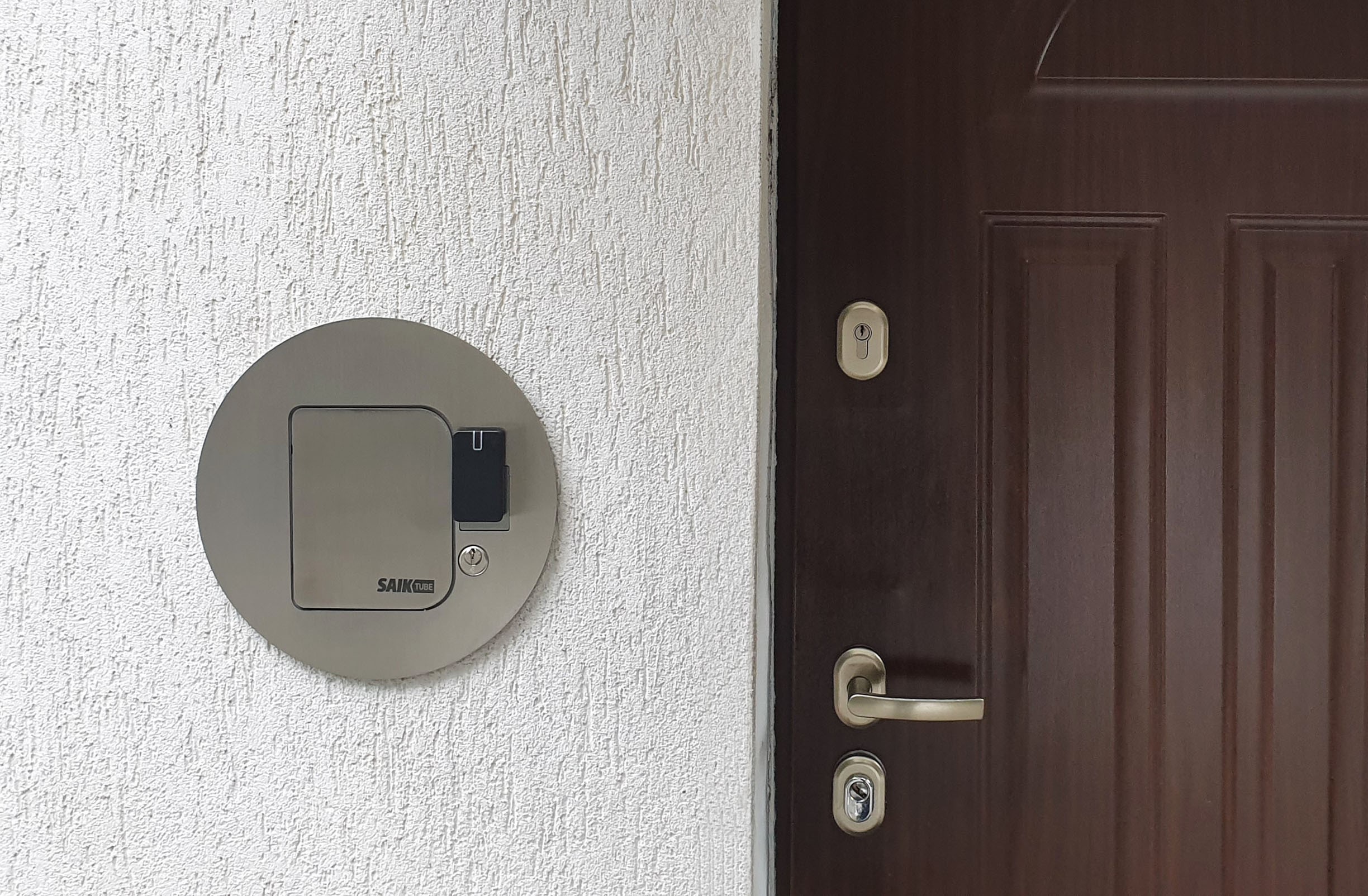

Securing the main entrance to the building
The key is quickly accessible right next to the entrance or gate, stored in a protected space under full control, accessible only to authorized persons.
Protection and security of dispersed objects
The key is quickly accessible at the facility, stored in a secure, fully monitored area, and accessible only to authorized personnel. There’s no need to return it to the main reception desk or exchange it between employees.

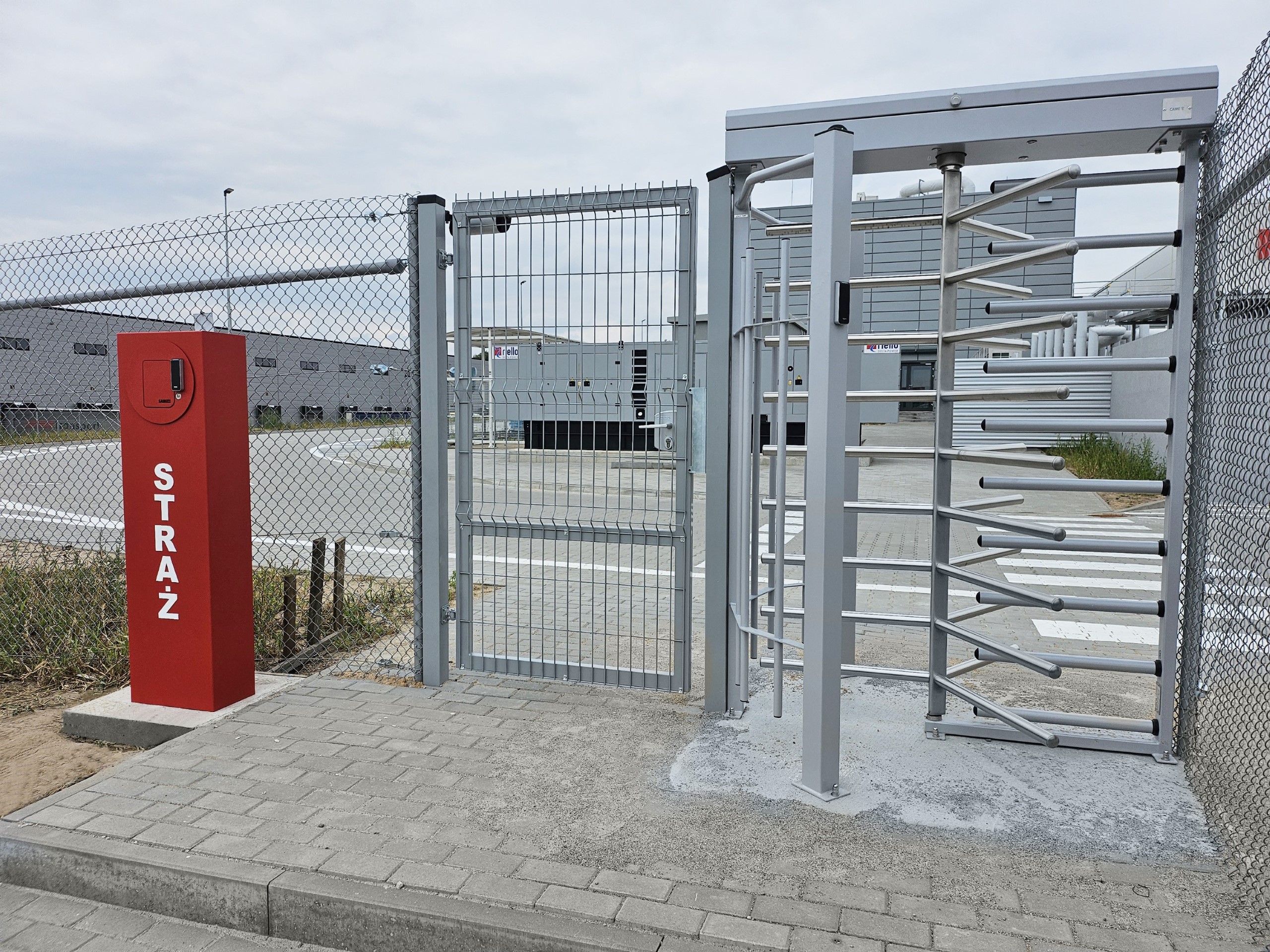

Emergency access for fire brigade and technical services
The key is quickly accessible to emergency services in emergencies and safety-threatening situations, such as fire. The TUBE can be opened remotely.
MONITORED KEY AVAILABILITY
MANY REPUTABLE COMPANIES AND INSTITUTIONS IN POLAND USE THE SAIK TUB
including buildings of banks, institutions, offices, logistics companies and warehouses, enterprises from many industrial sectors, as well as energy facilities.
PRINCIPLE OF OPERATION OF THE DEVICE
STEP I

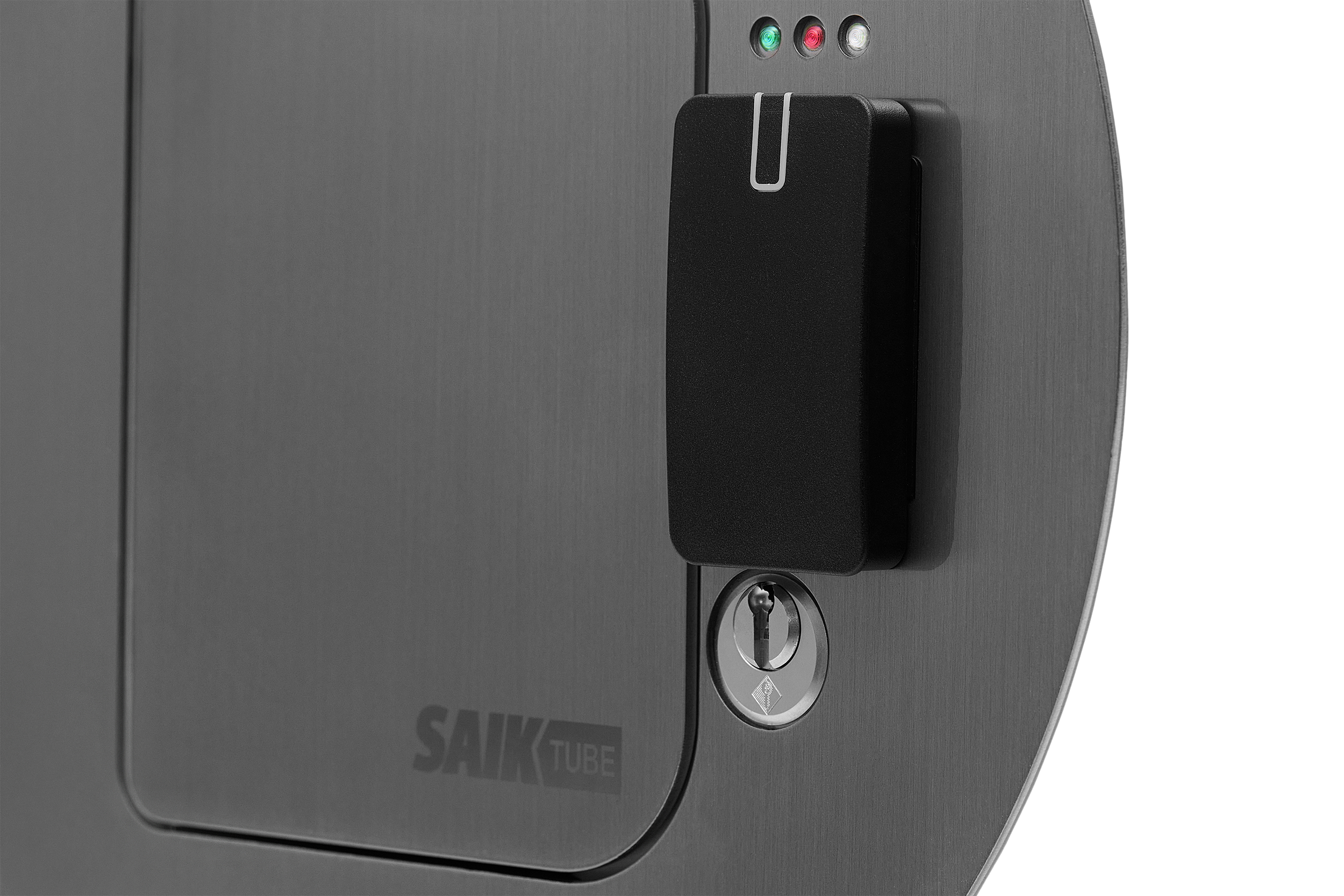

The user performs first-level authorization using an RFID card or tag, and after the correct procedure, the first front door of the locker opens.
STEP II

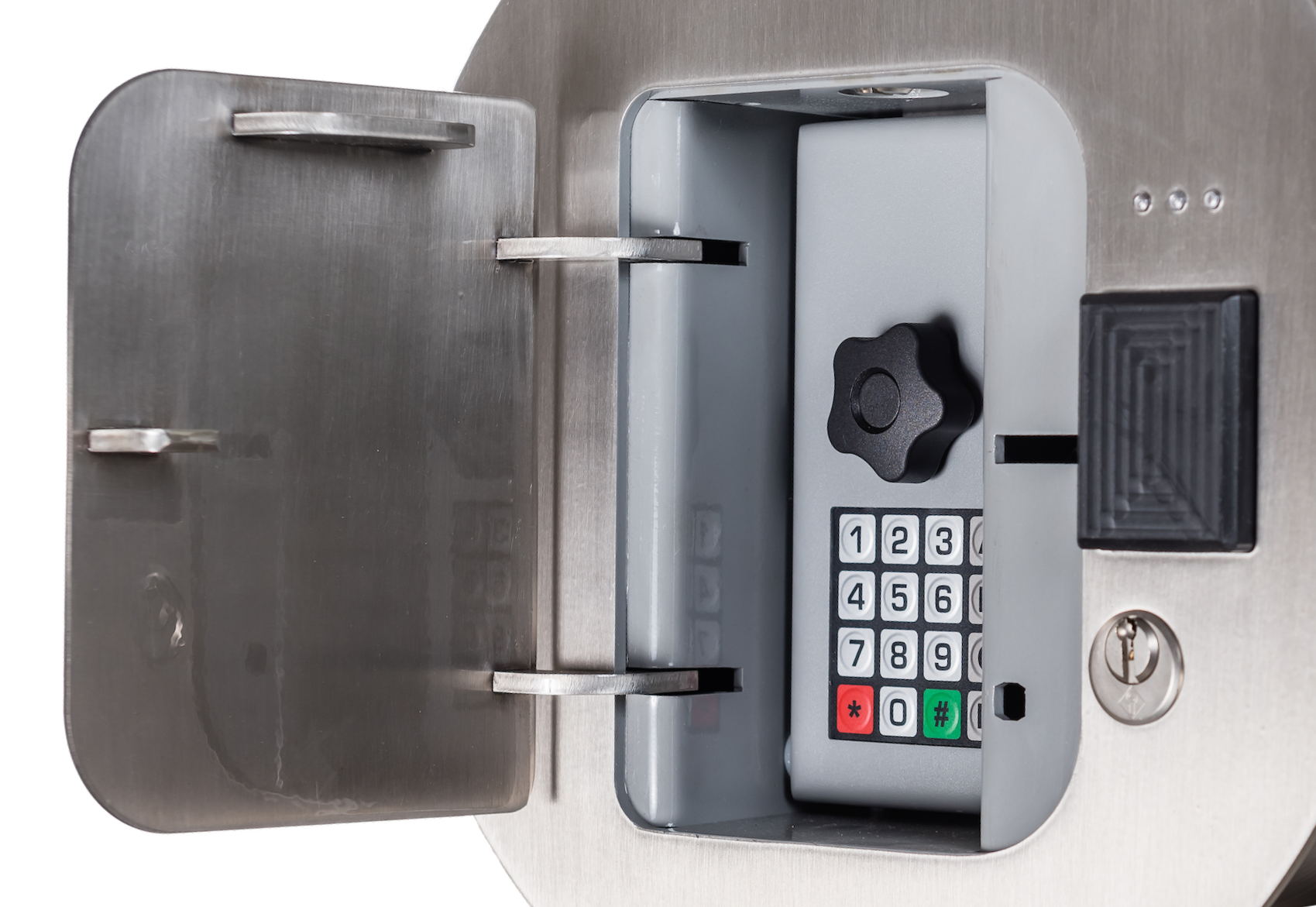

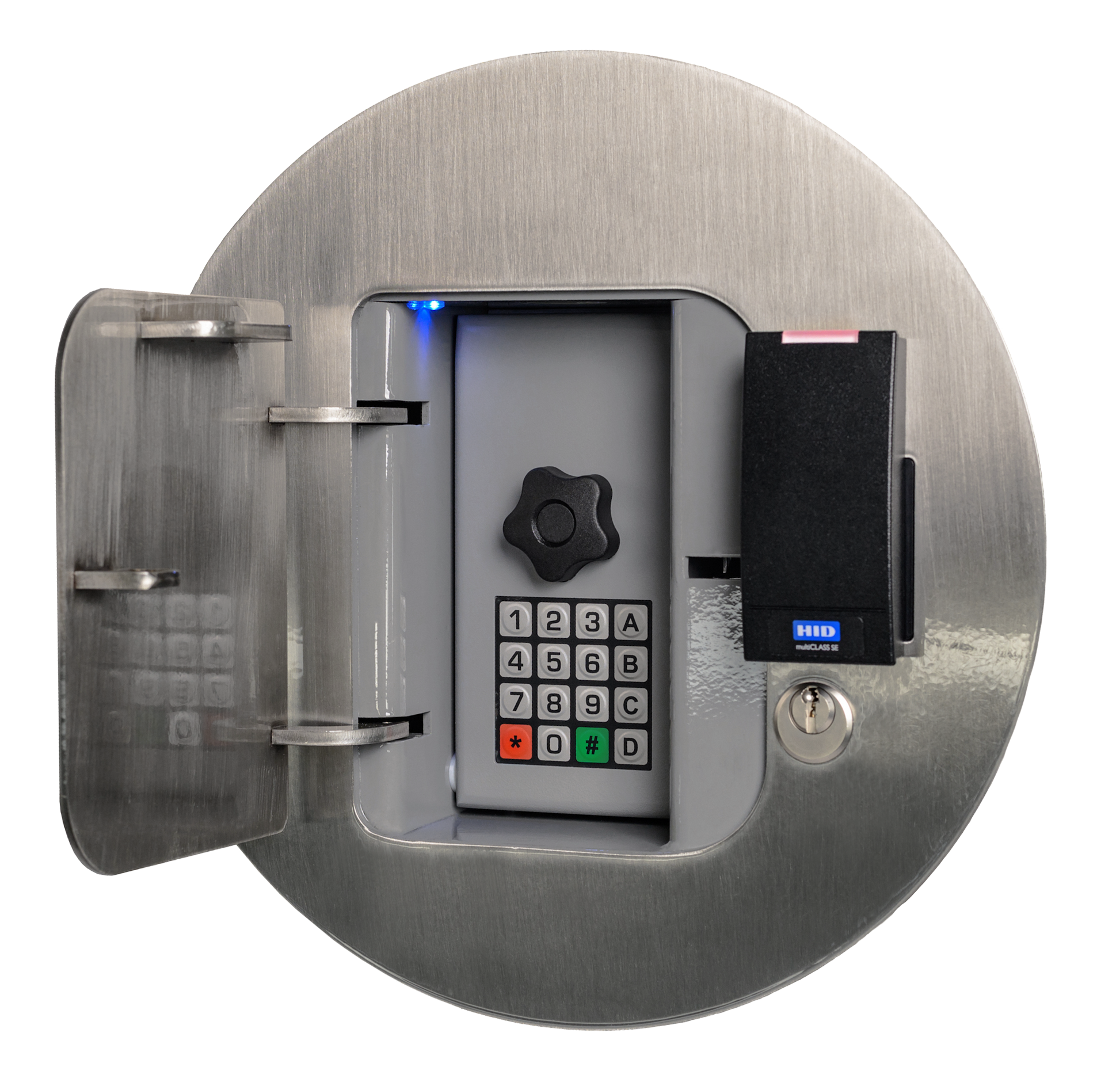

The user’s PIN is entered on the internal keypad, representing Level II authorization. Once entered and confirmed, the Level II security door lock is released.
STEP III

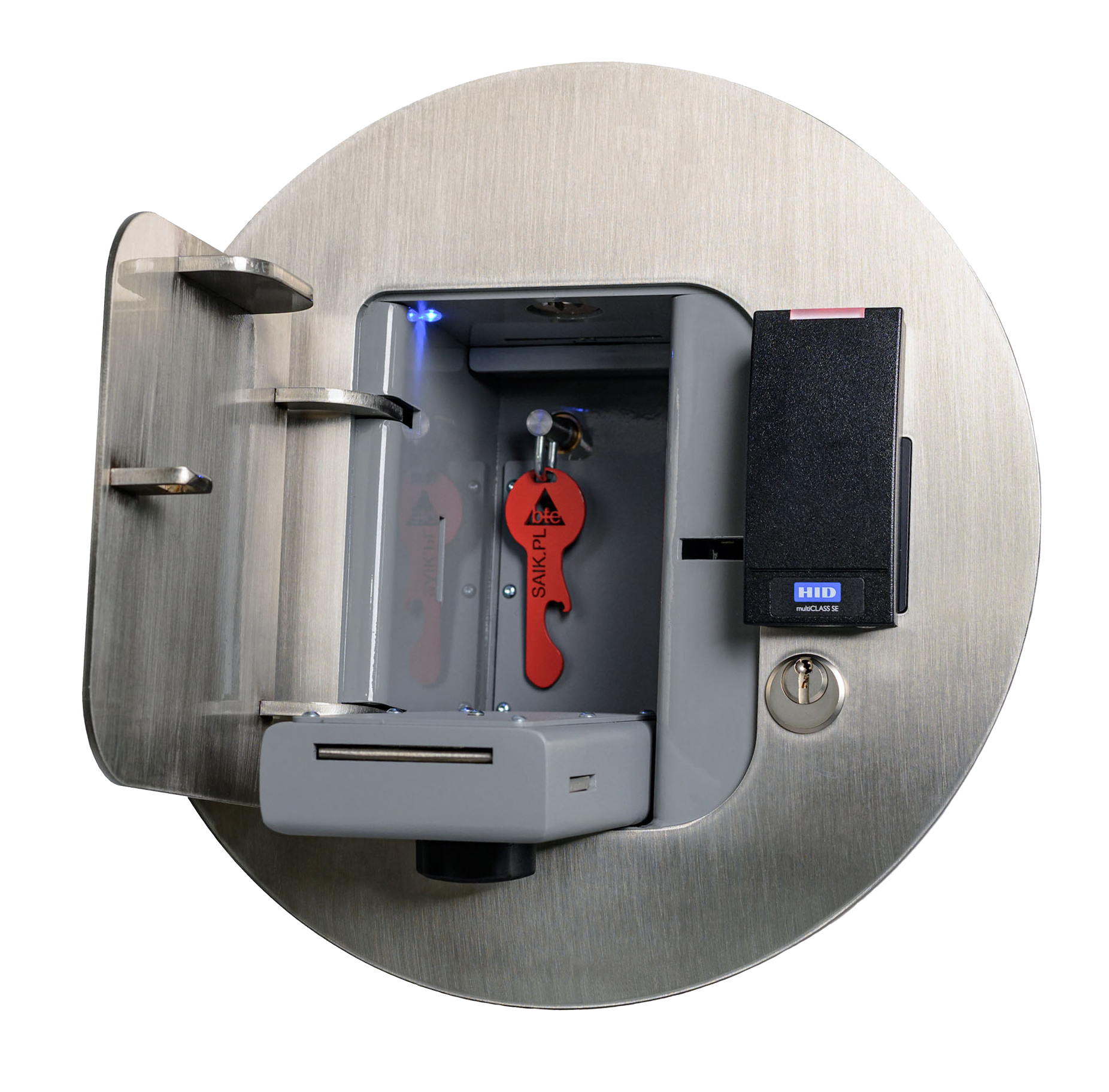

After successfully completing these two steps, the glove compartment opens and the key fob lock is released. The key fob can be removed freely and then closed to end the operation. A report of the entire procedure is generated in the database.
EVENT MONITORING, REPORTS AND ALARMS
Every valid and invalid operation is recorded in the database along with the date, exact time, and authorization details. All information is available for review in a generated report. Additionally, notifications are sent to the system administrator. The RC3-class device is difficult to force and is equipped with multiple sensors, so any attempt to force the lock triggers the alarm system and sends alerts to the system administrator.
Advantages of using the device
Key always available 24/7
No need for the presence of the person issuing the keys
Easy key exchange between employees on different shifts (last leaved – first arrived)
Key availability for emergency and technical services
Reported and supervised key collection and return
Emergency power supply up to 48 hours
Alarm system, notifications and burglary resistance
Application for main buildings and field facilities of technical infrastructure
Authorized access to the key and building
Easy management of key assignments to employeesw
Intuitive management application and dedicated administration system
Easy expansion with an additional internal key/item cabinet inside the building
Technical specifications
| Construction | stal nierdzewna |
| Number of fob places (keys)* | 1 standard 2 optional |
| Length | 20 cm |
| Outer diameter | 32 cm |
| Mounting hole depth | 25 cm |
| Installation method | concealed (in wall) |

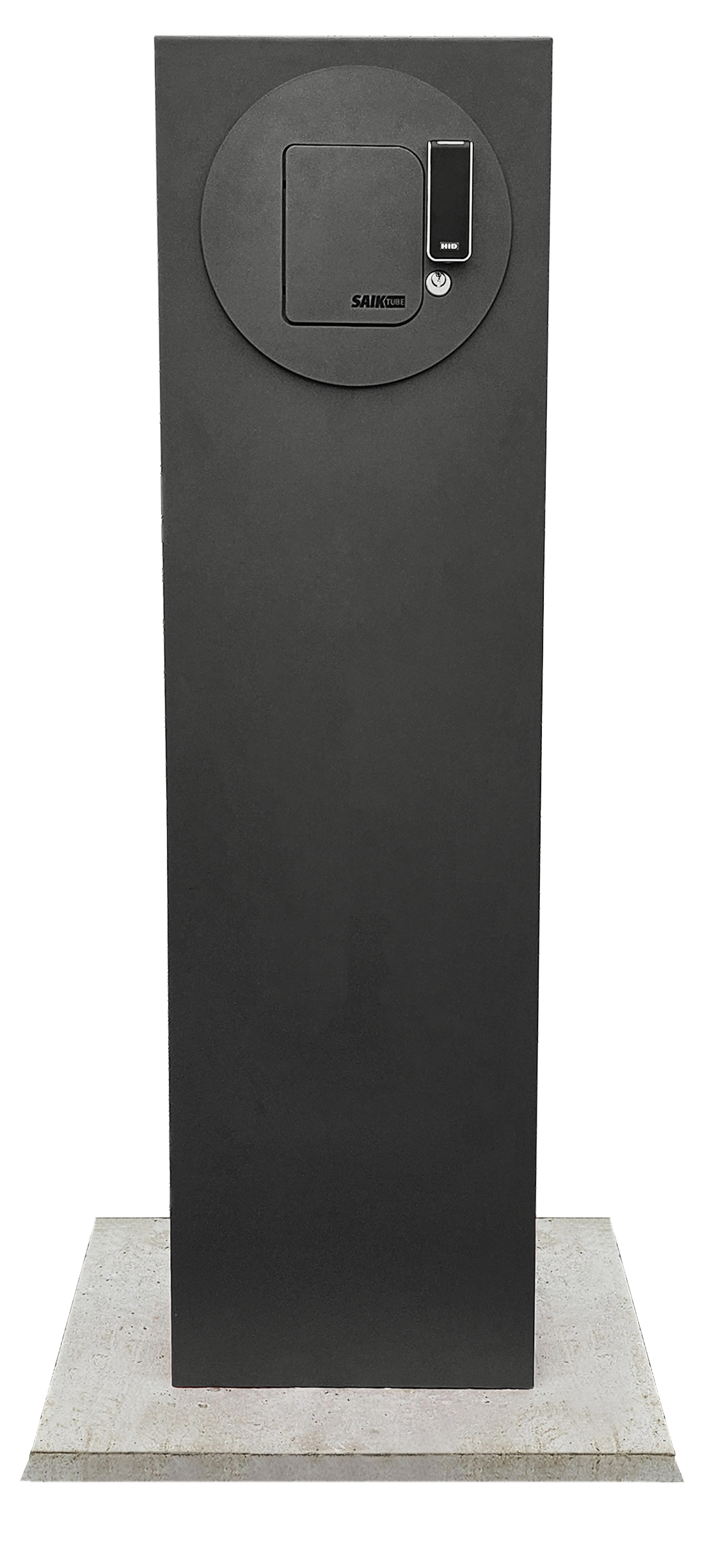

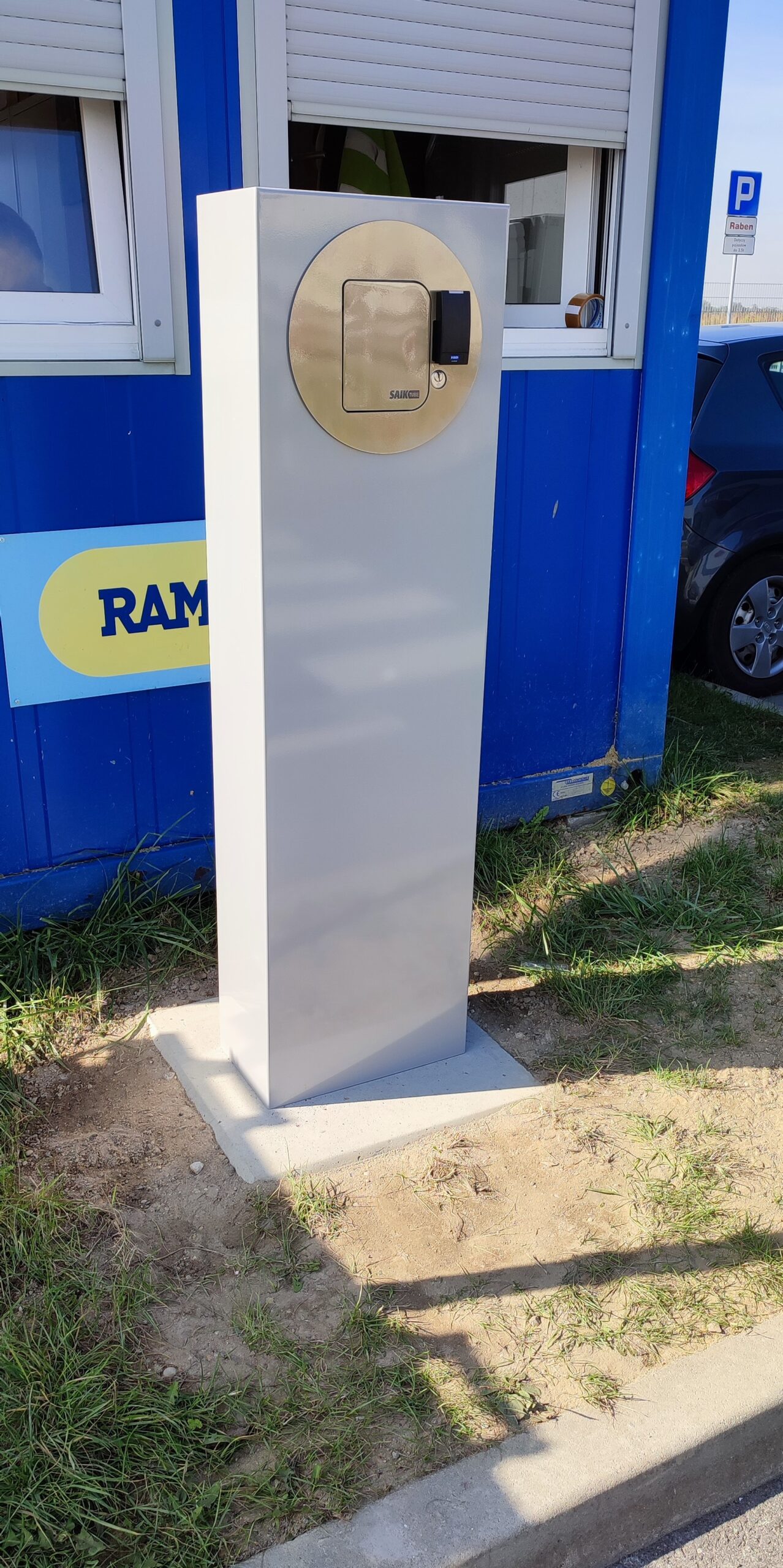

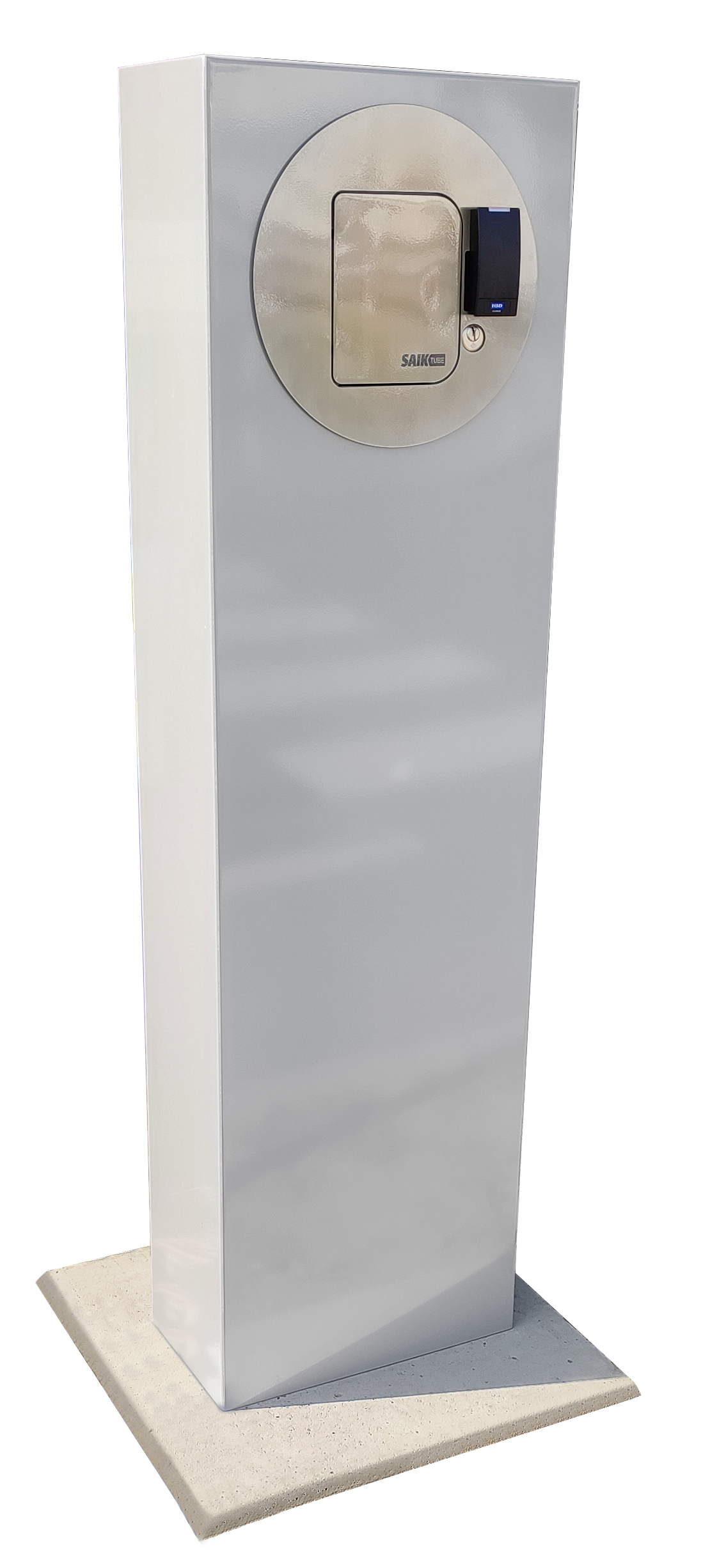

| Freestanding version | YES, on the dedicated frame |
| Card reader (first barrier) | any |
| Alphanumeric keyboard (second barrier) | YES |
| Emergency power supply | min. 48h |
| Wall detachment sensor | YES |
| Intrusion sensor | YES |
| Outputs to fire protection and access control systems | YES |
| Full event log | YES |
| Administrative software | YES |
| Reporting software | YES |
| Software for the guard | YES |
| Communication with software | TCP/IP |
| Resistance class according to PN-EN 60529:2003 | RC3 |
| Degree of protection according to PN-EN 60529:2003 | IP 56 |
| Country of production | Poland |

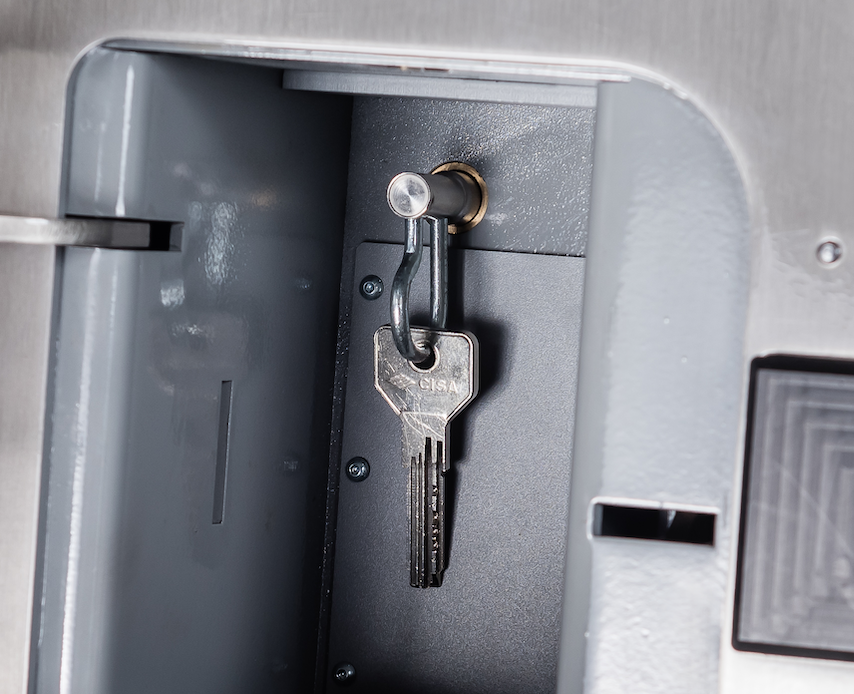

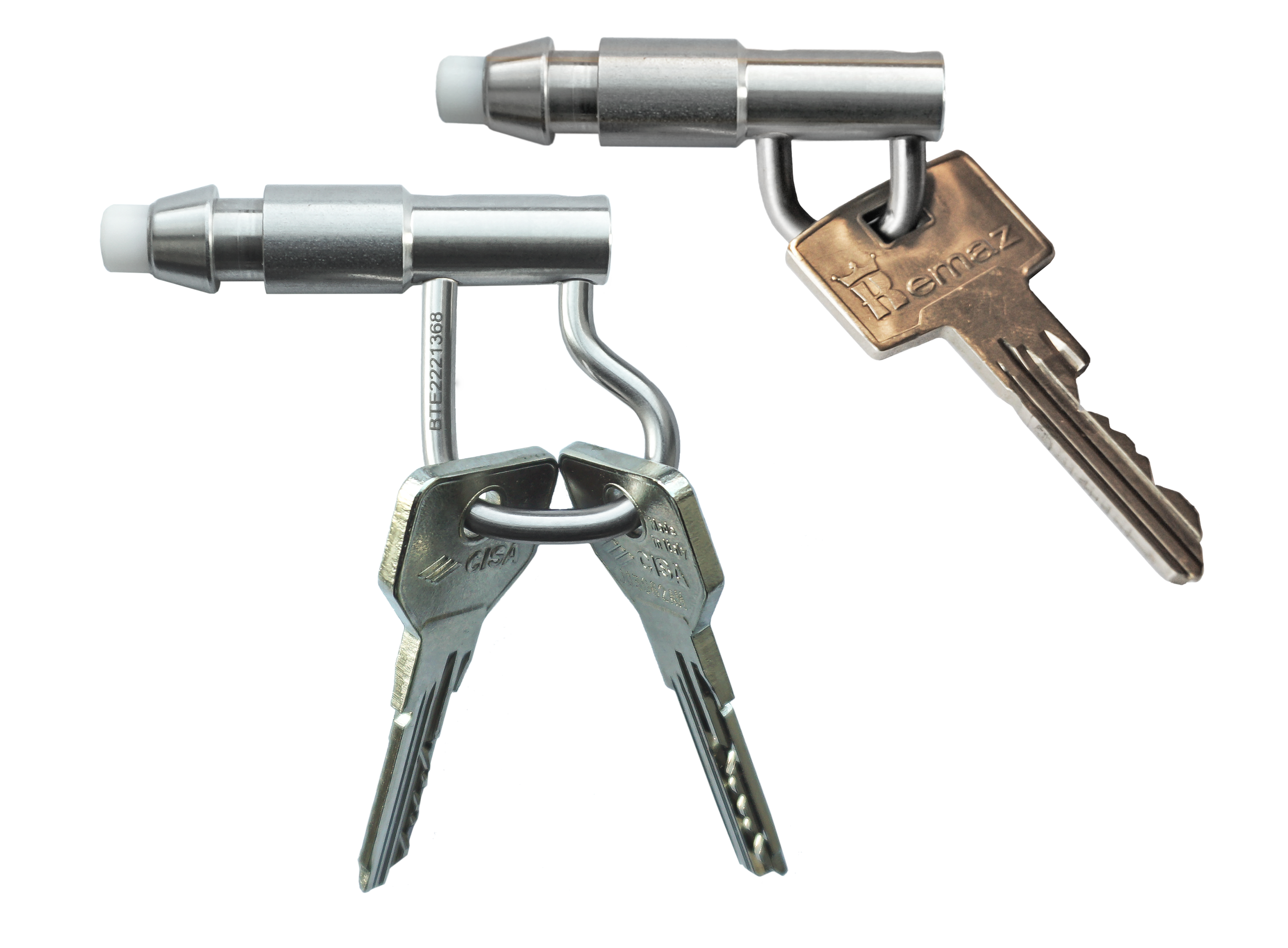

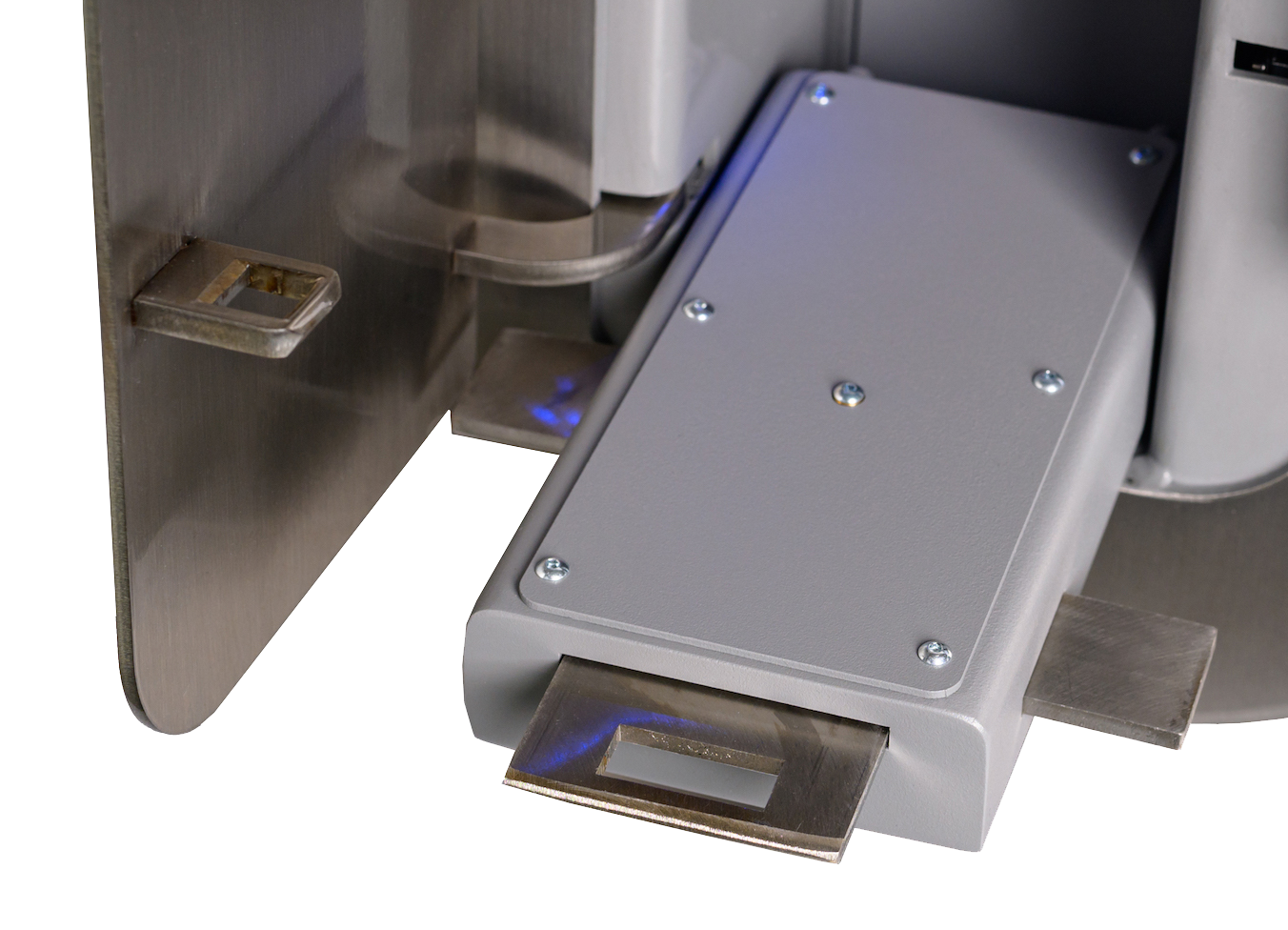

* Steel fob with Key – The sturdy steel construction provides additional security for the stored key, which is difficult to separate from the pendant.
Three different padlock sizes allow you to store more than one key on the keychain; this can include a complete set of building keys (entrance and several for additional rooms).
Optionally, it is possible to make a device with 2 key fobs, then one device can serve 2 separate buildings standing next to each other.
Gallery

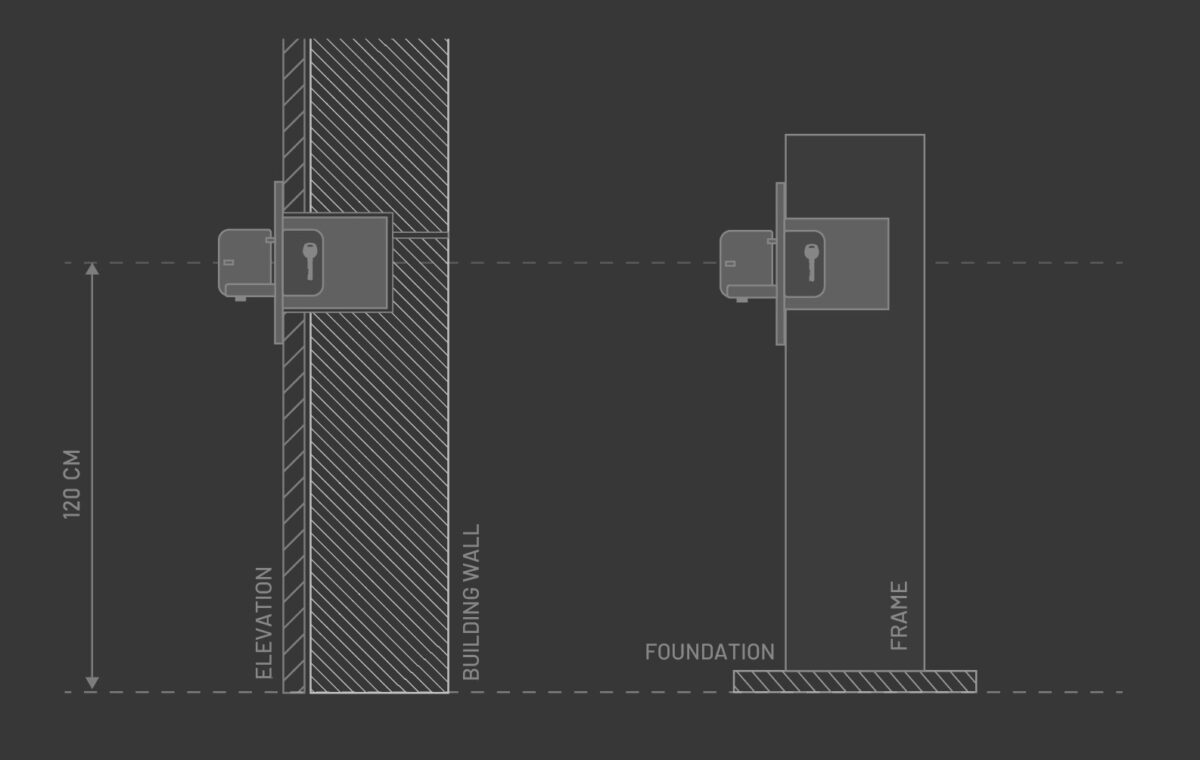

Device assembly and personalization

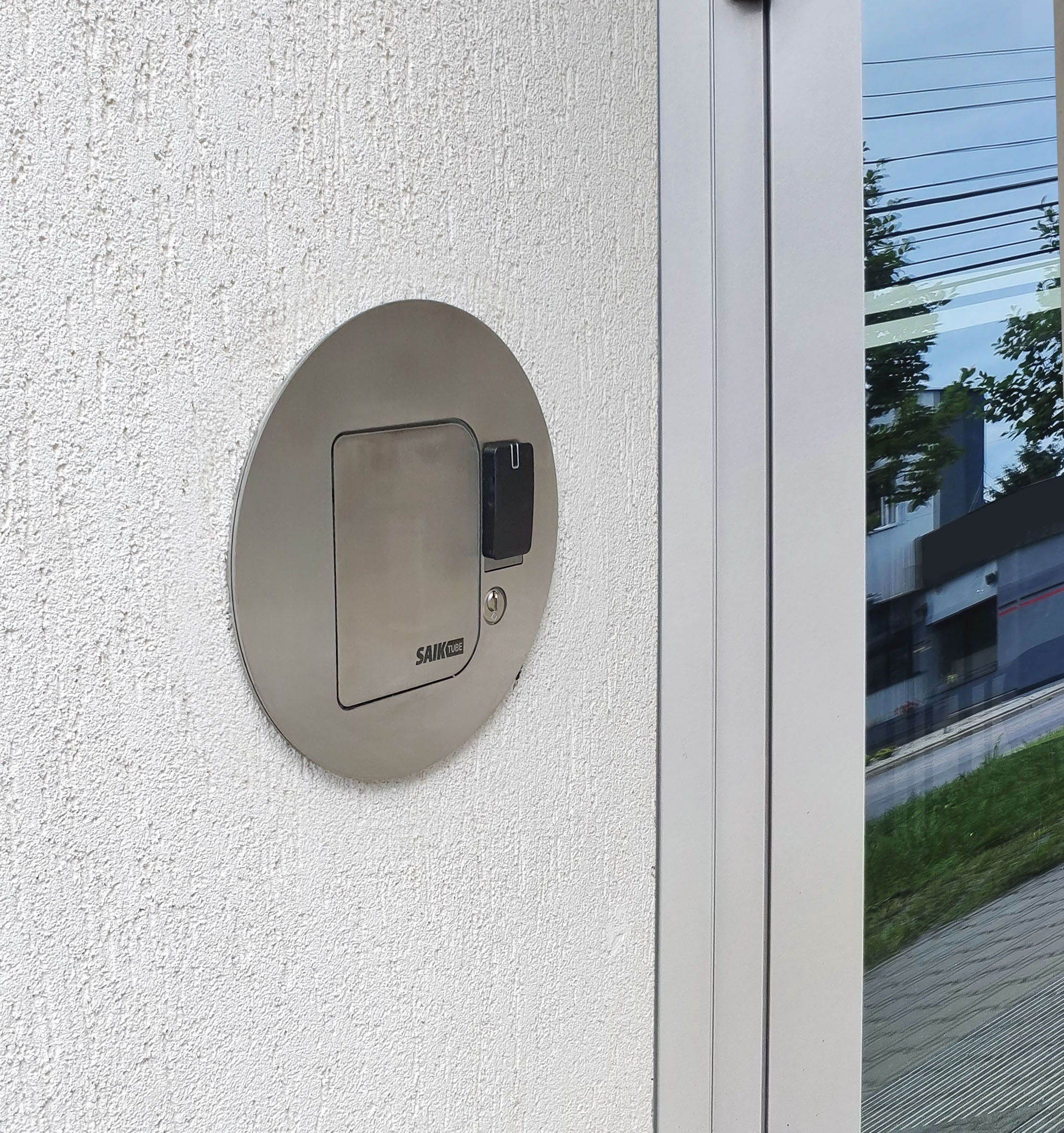

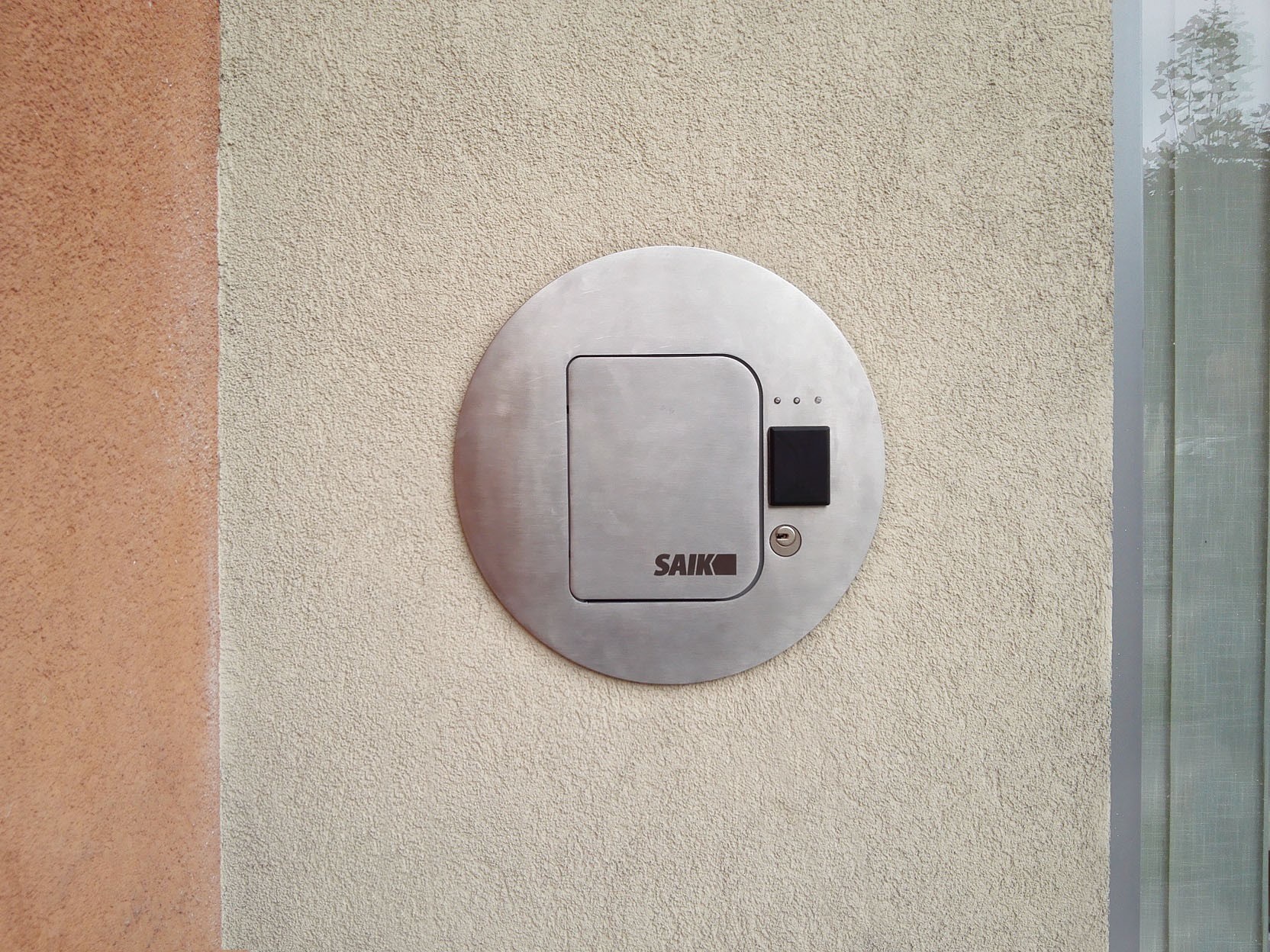

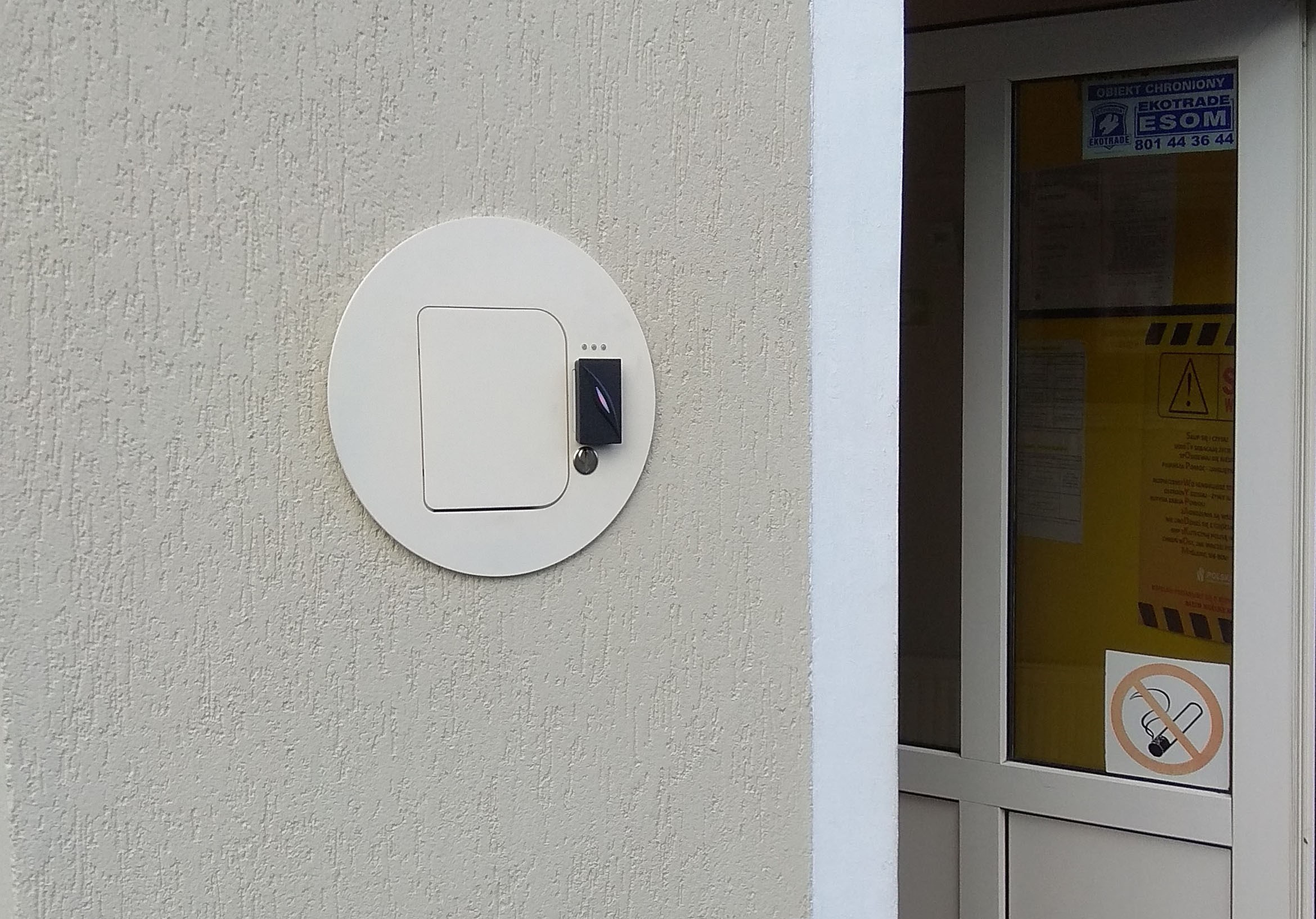

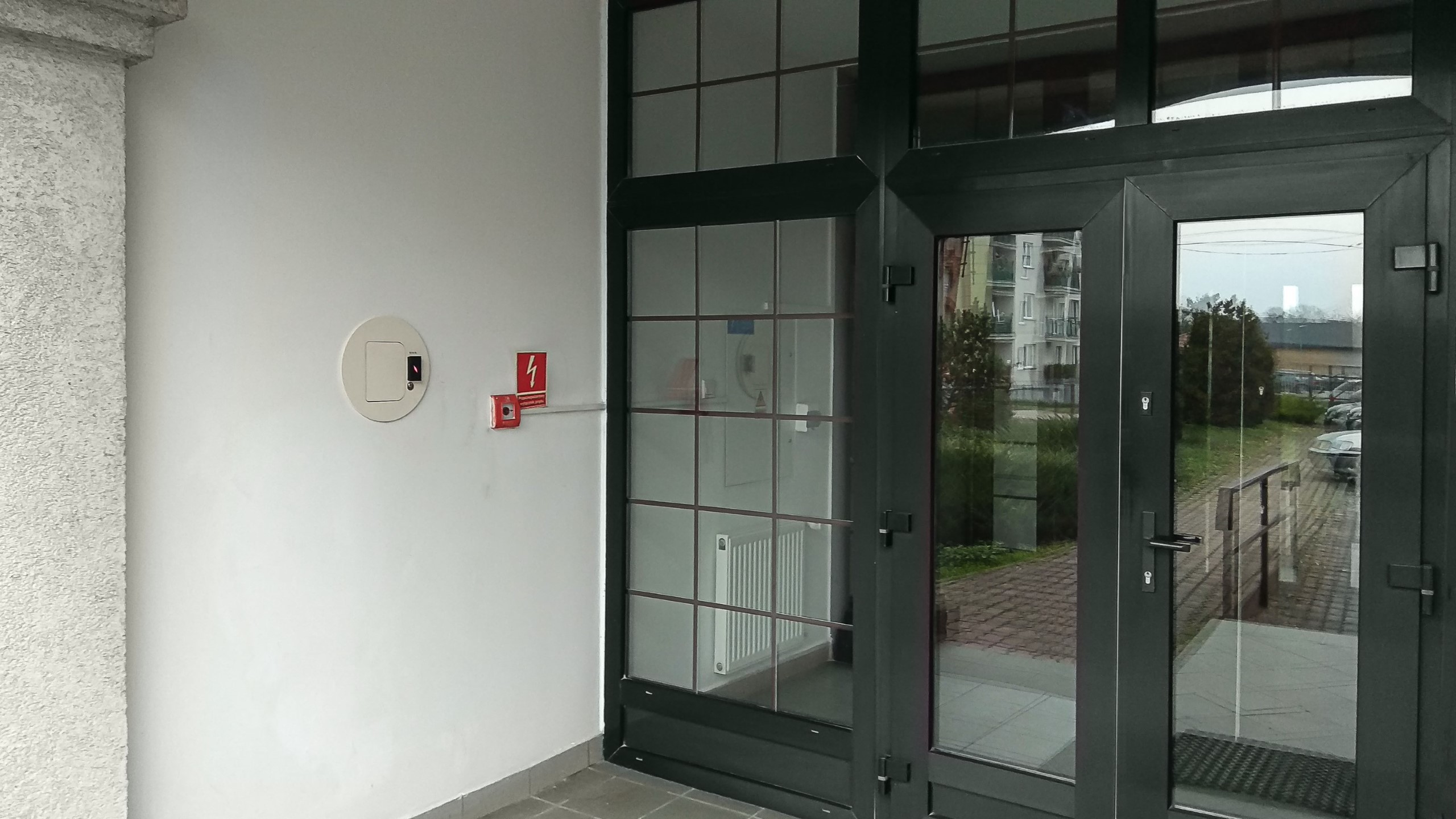

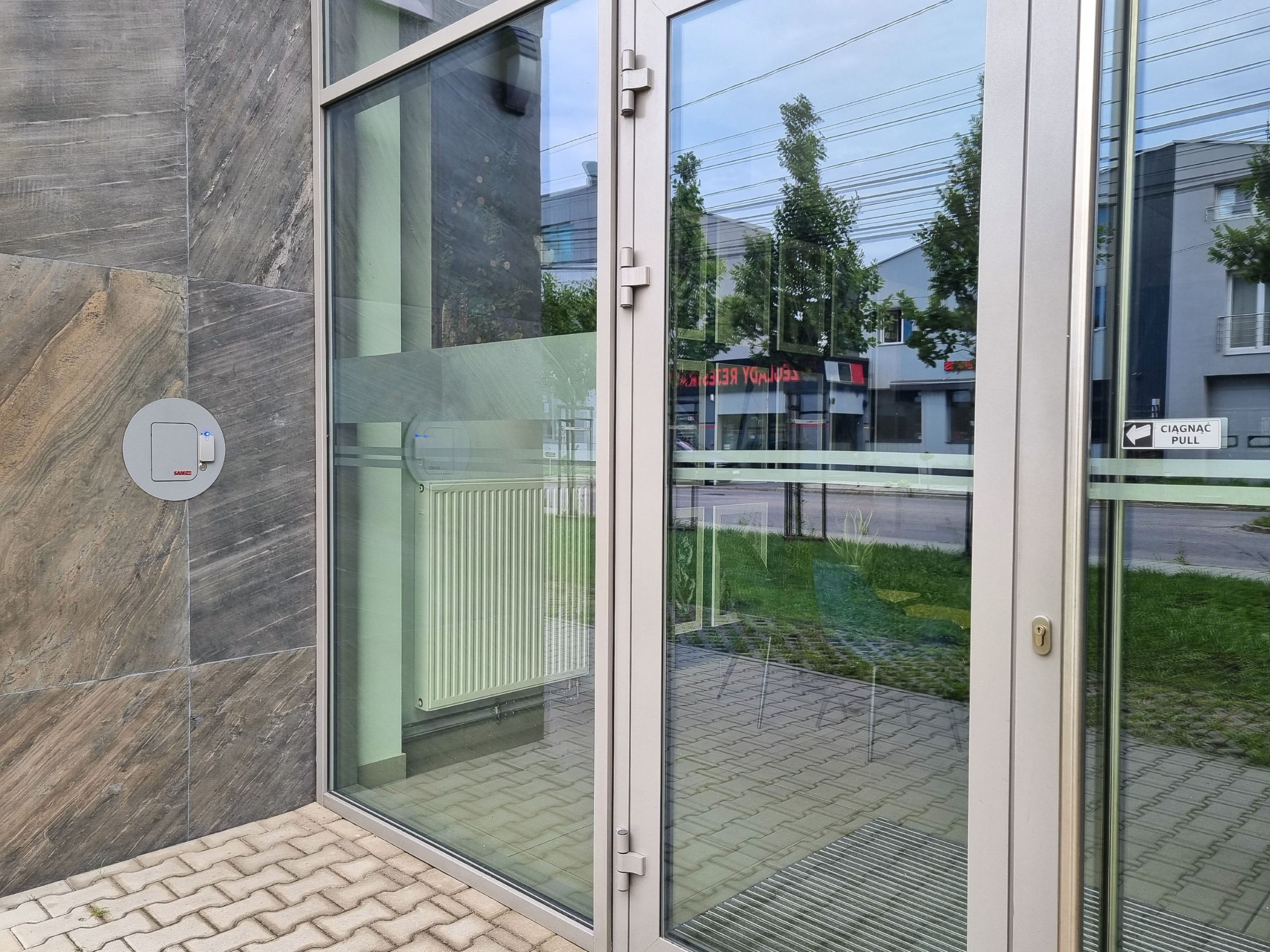

As a standard, the device is mounted in the building wall, flush-mounted, and the cabling is provided from the inside. If this solution proves problematic or if we do not want to damage the building’s facade, an alternative solution is used: a dedicated steel frame reinforced with a small foundation in the case of installation on soft ground.

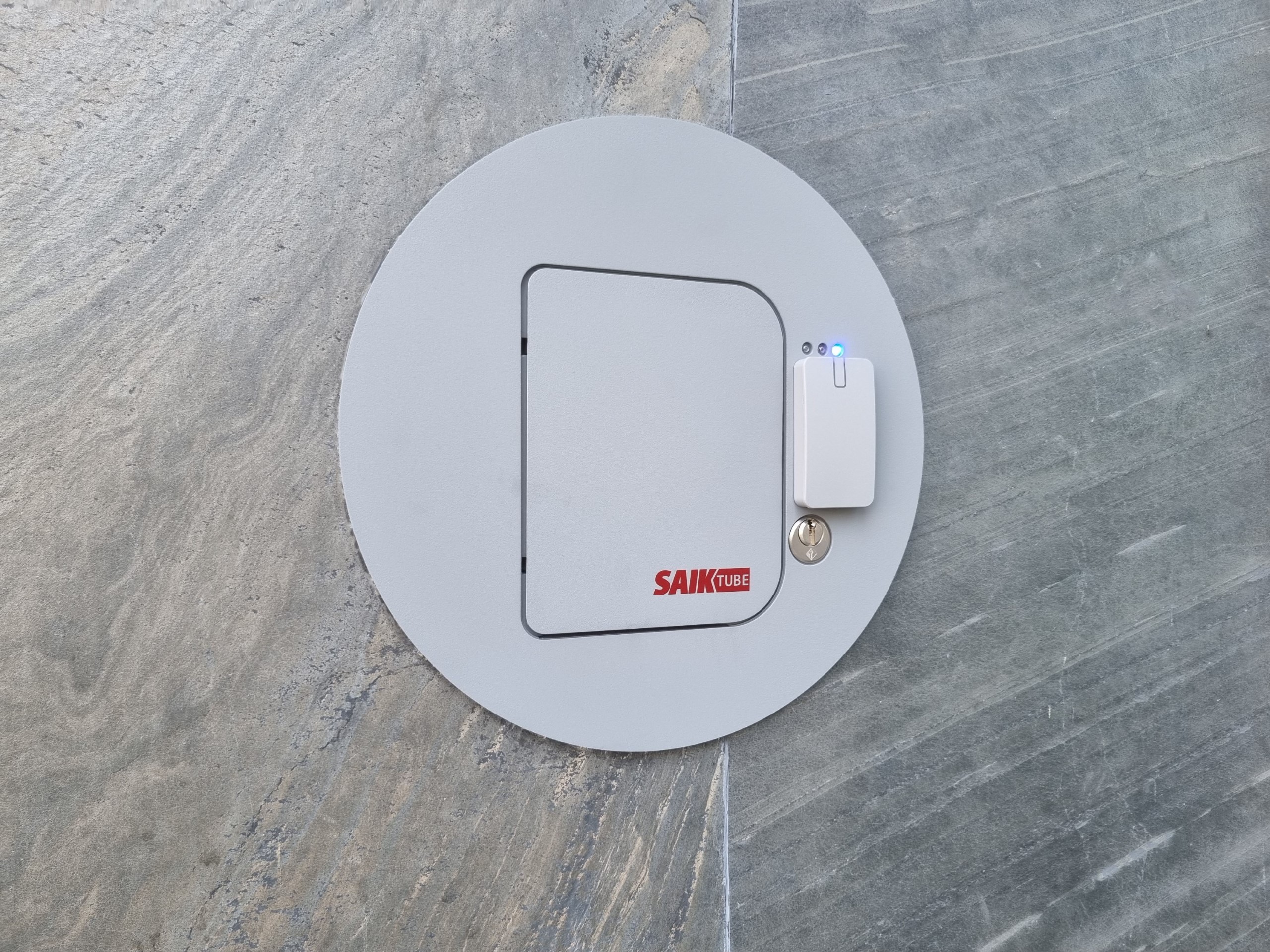

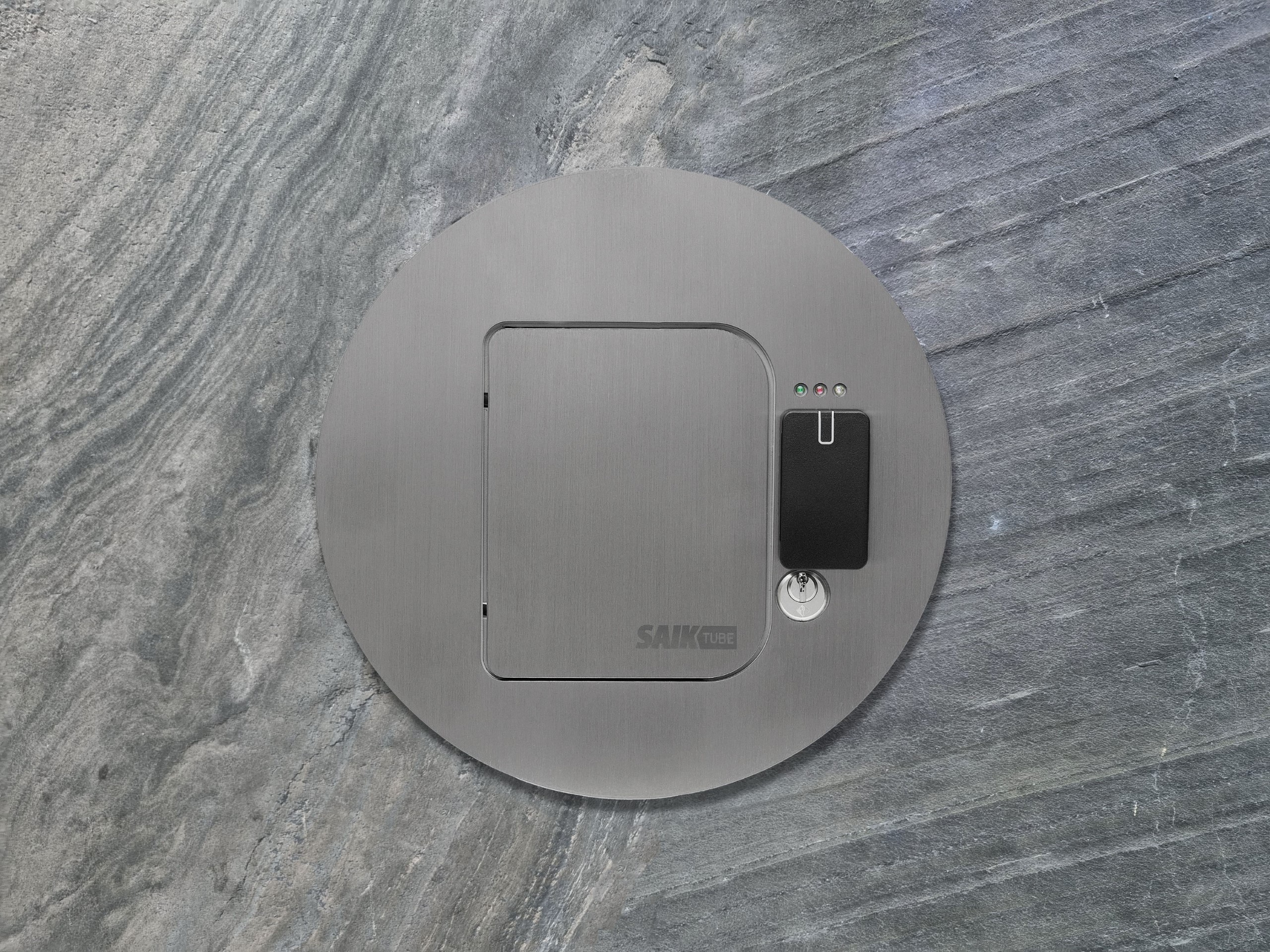

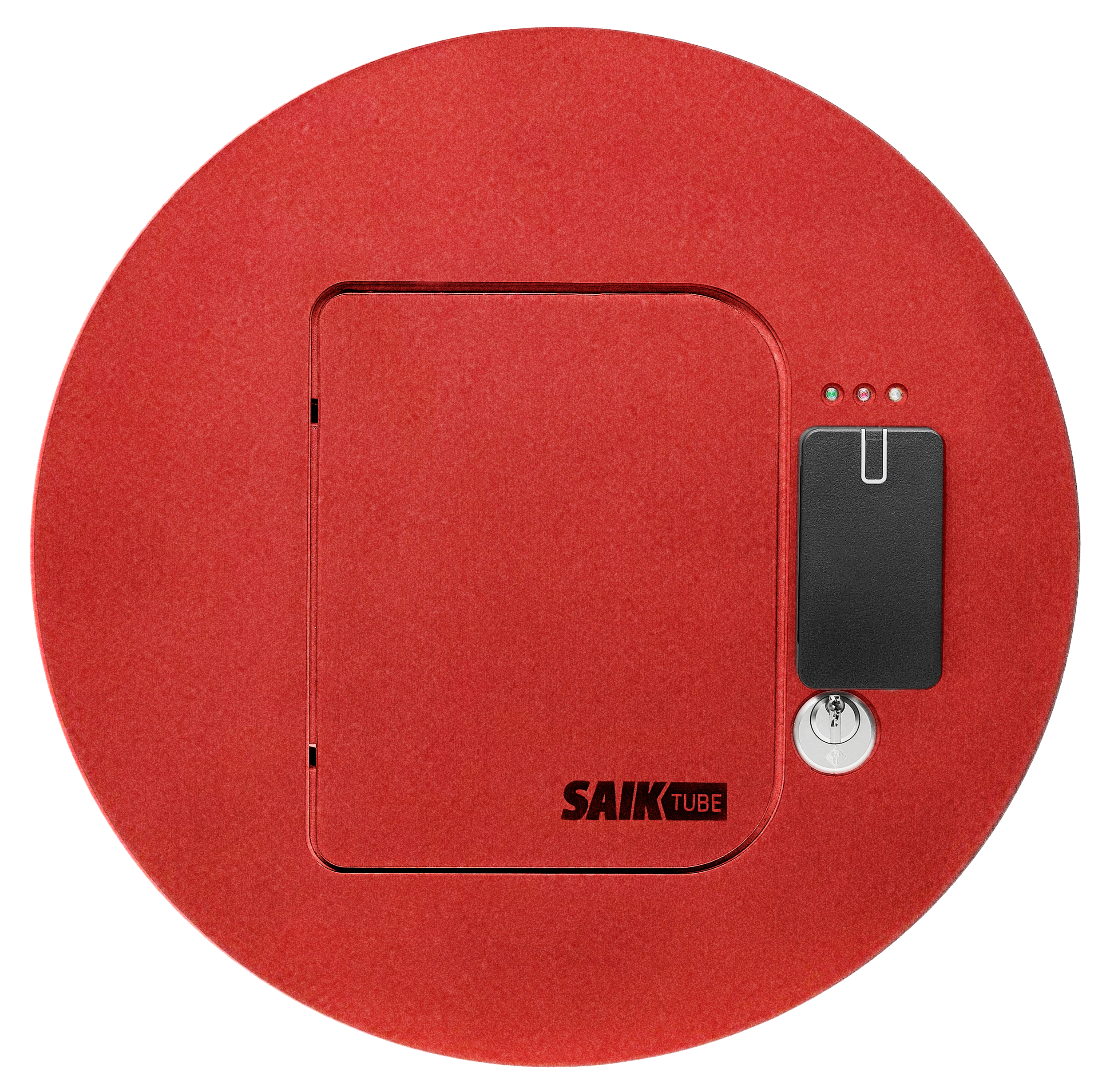

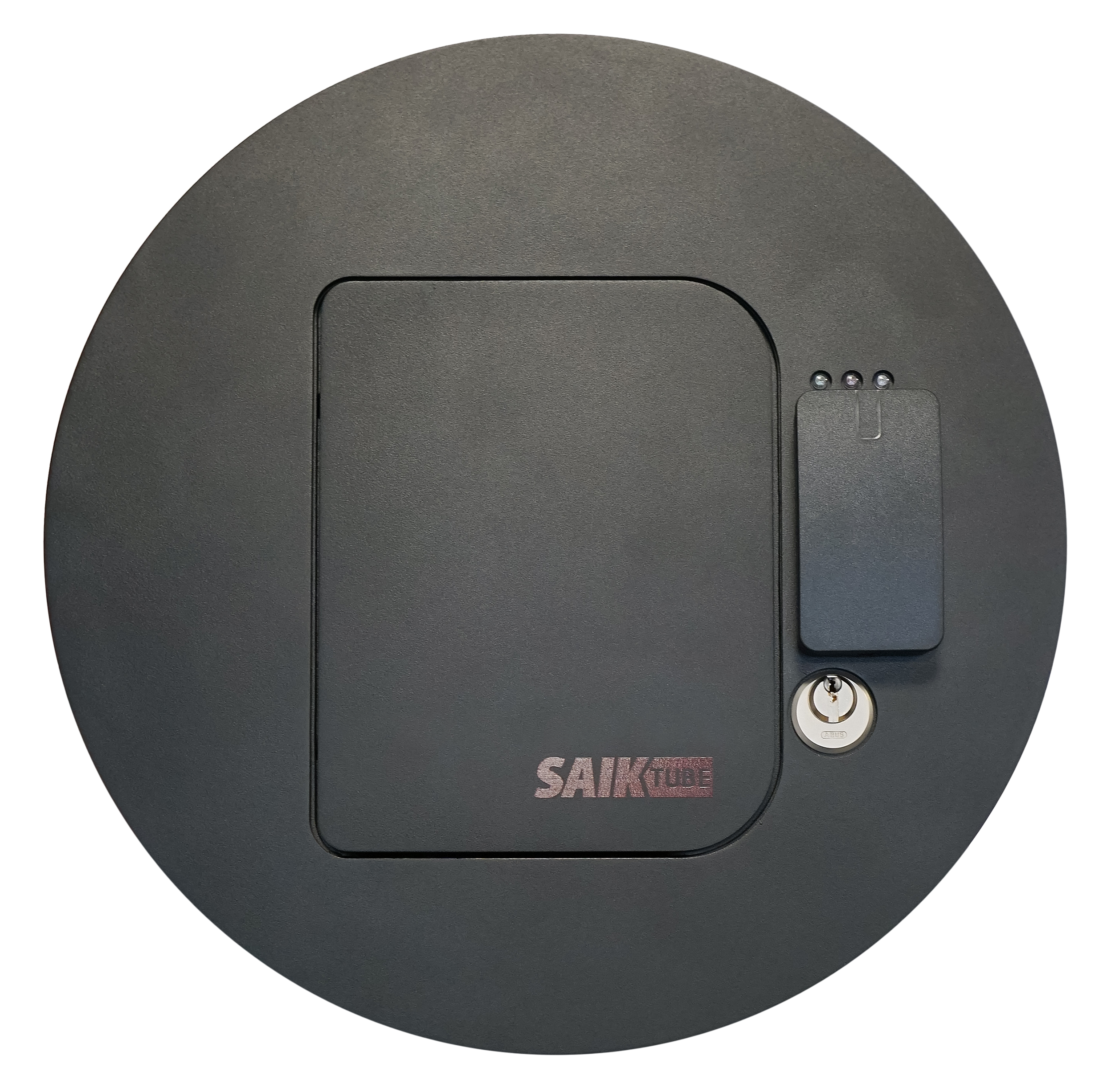

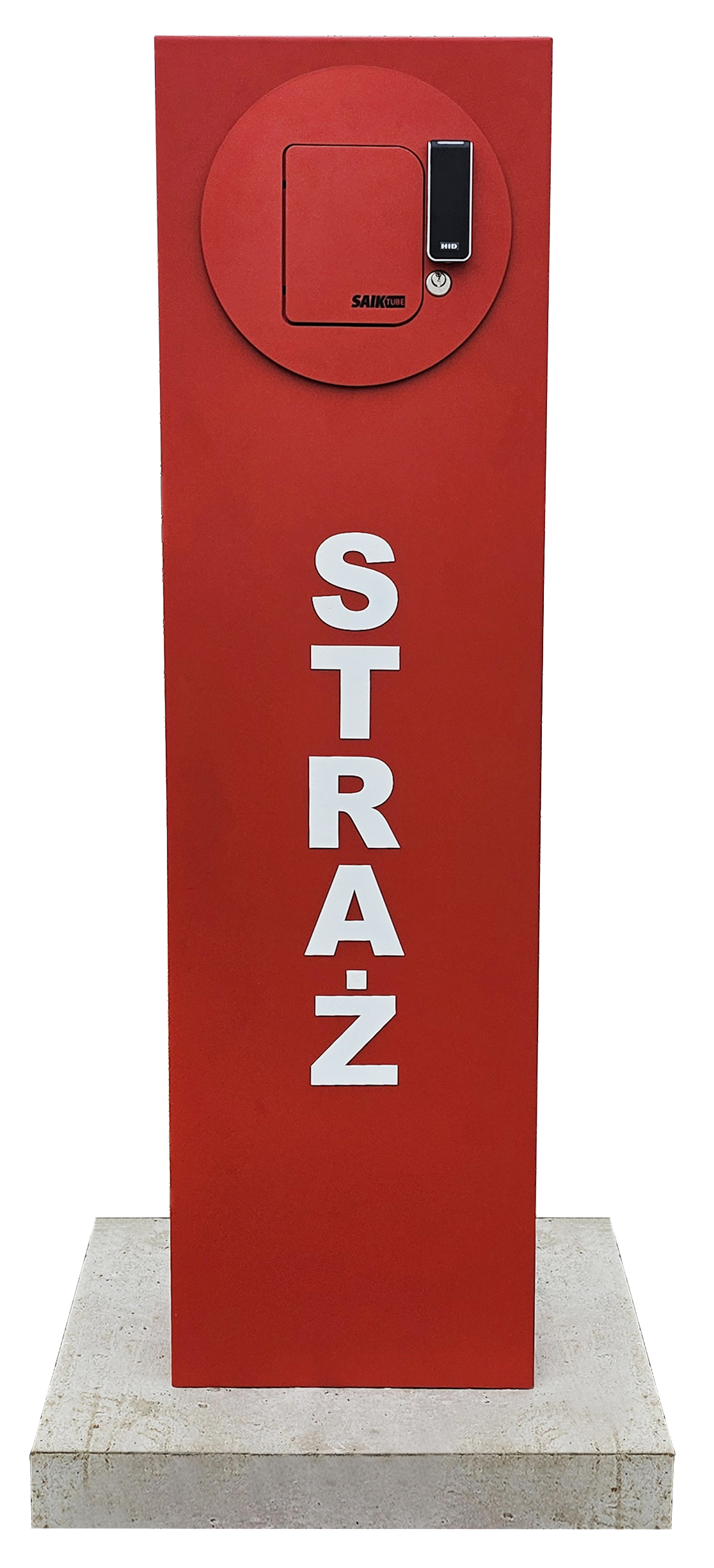

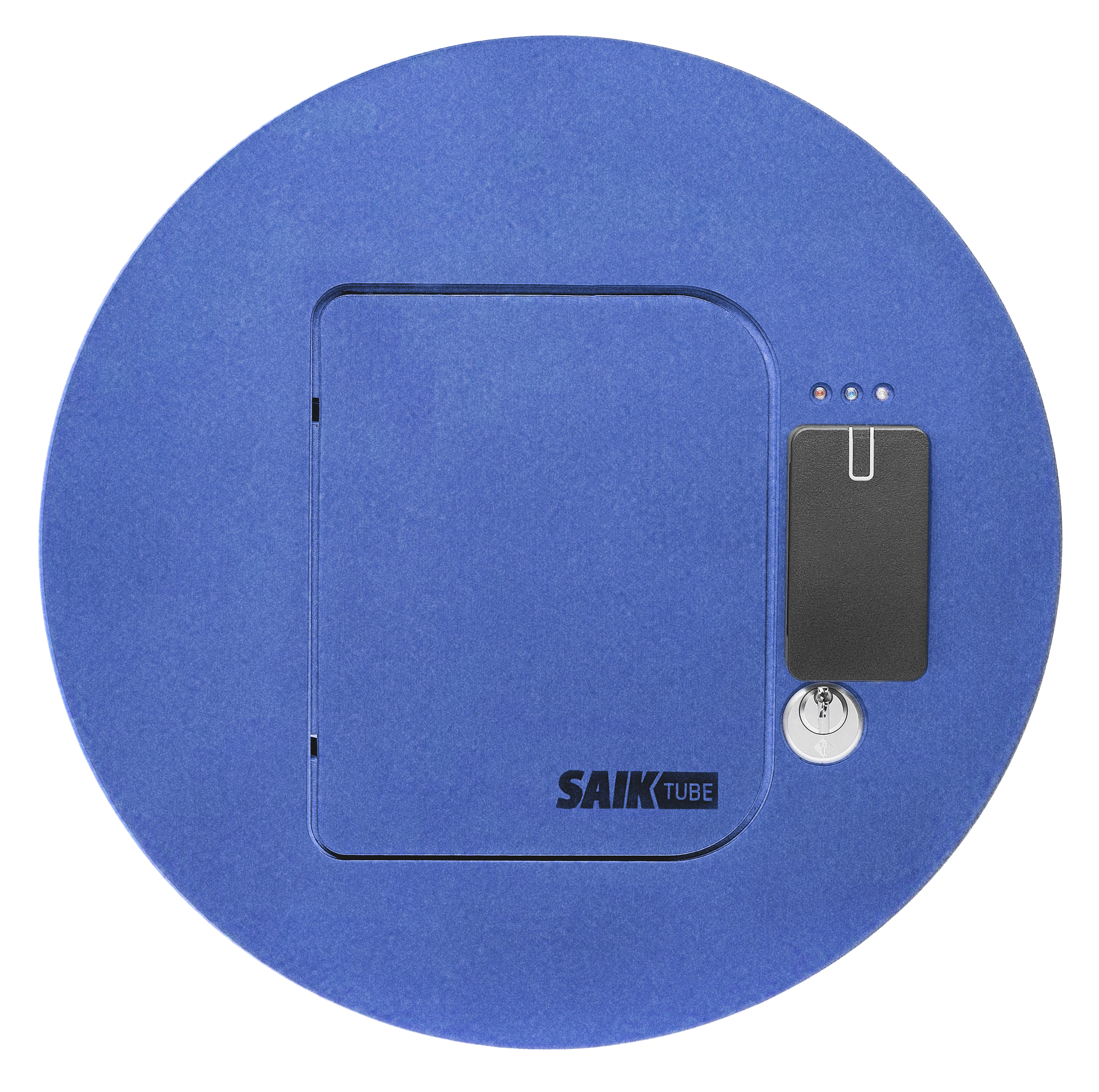

The device and frame are painted in a standard RAL color to match the building’s facade, company brand, or customer’s taste. Additionally, logos and other text and graphic signatures can be applied to the device according to the customer’s needs.

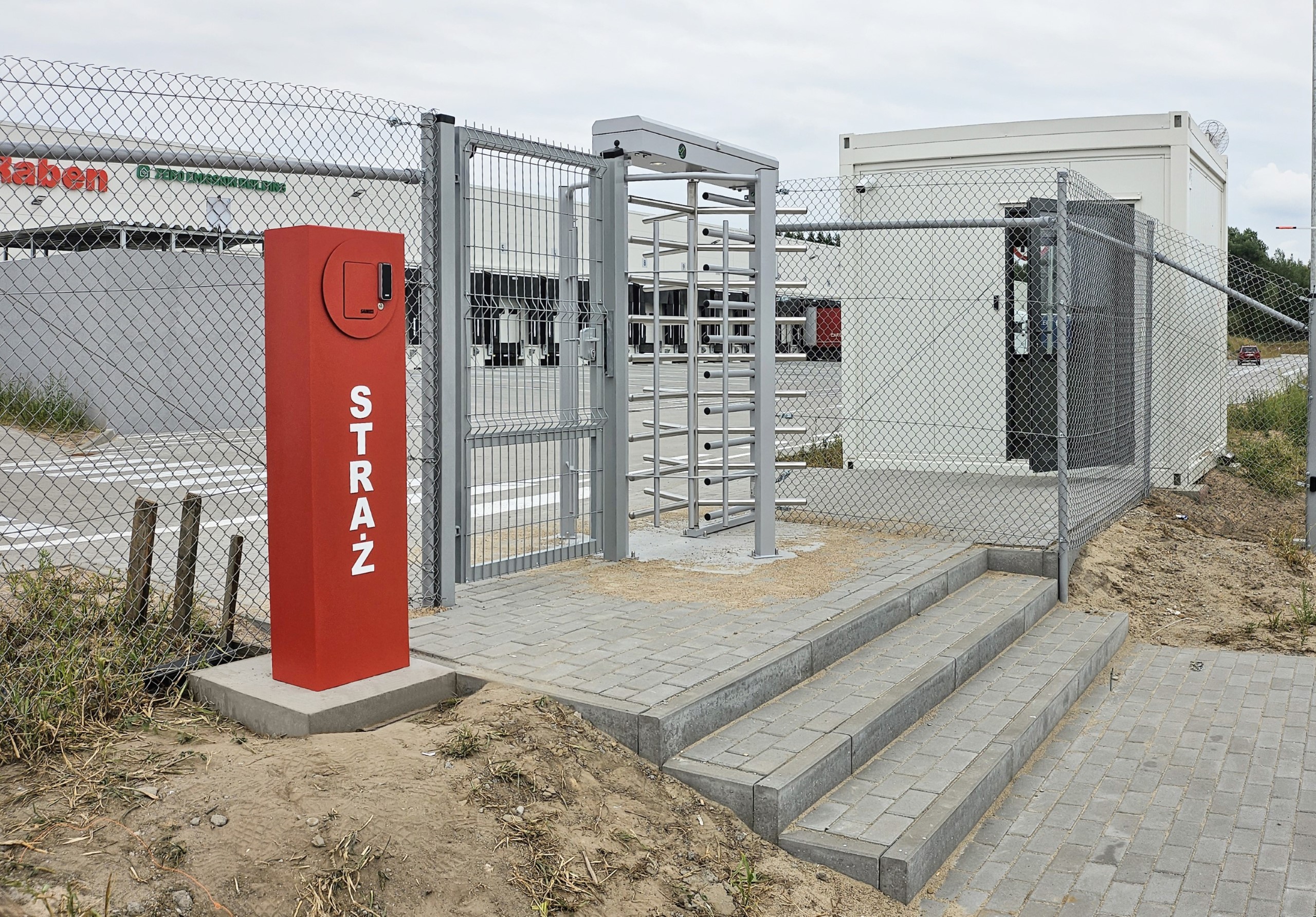

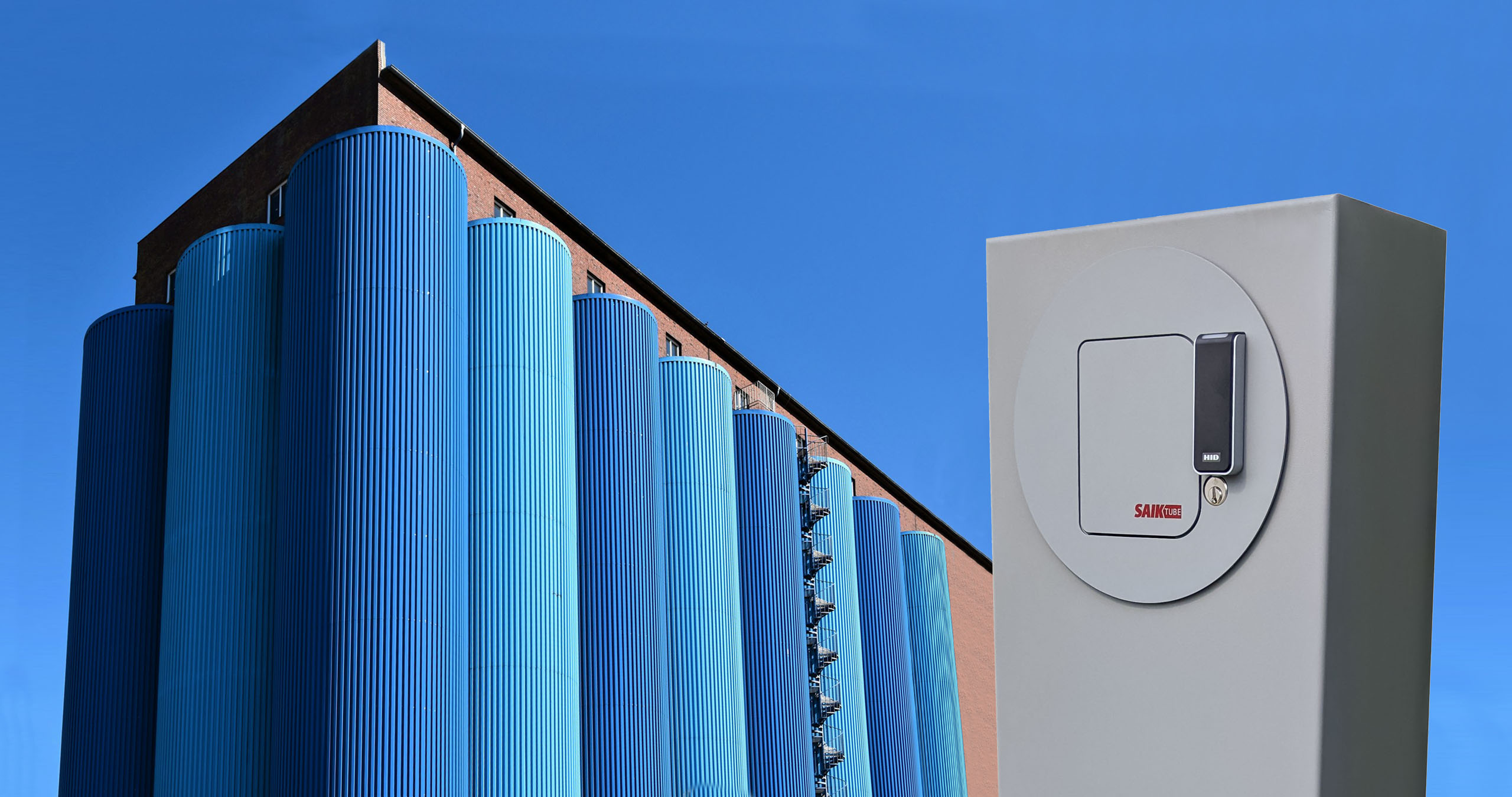

Distributed objects control
The device is ideal for storing entrance keys to buildings in the field, when staff aren’t permanently present and only a designated employee enters occasionally. The key is always located close to the entrance, so if a designated employee is out in the field and needs to access the building at a given moment, they don’t have to go to the company’s headquarters to collect the key. This streamlines and speeds entry and is also helpful in emergency situations, such as for fire departments or technical services.
Integration with security and access control systems
The SAIK system works well with other popular security systems currently operating in the target building.
Integration with another depository
The SAIK TUBE works well with other SAIK devices. If you already have a SAIK locker, the tube locker will be a very good and valuable extension of your entire system. If you only purchase the SAIK TUBE device, you can consider purchasing another SAIK locker in the future. They will work seamlessly within your entire key management system.
SAIK WEB Admin
An intuitive application that allows you to easily manage access for individuals and groups of employees to the master key and building entrance, as well as customize other SAIK keys and lockers operating within a single SAIK system.
Secure storage
of the master key
Dedicated external storage
for the master key to buildings,
industrial and outdoor objects.
• Aesthetic design that doesn’t draw attention from bystanders.
• Reinforced steel case
• Reinforced steel key ring.
• The device has RC3 burglary resistance class and IP 56 protection level.
• In combination with an alarm system, it ensures building security.
• Double doors securing access to the key, protected by a reader and numeric keypad.
• Possibility of remote opening.
• Resistance to factors atmospheric.
• Externally mounted, flush-mounted, on the building’s exterior façade or on a dedicated pedestal.
• Possibility of personalizing colors and applying your own logos.
HIGH QUALITY PRODUCT
CERTIFIED SECURITY LEVEL
FUNCTIONALITY AND APPLICATION
Securing the main
entrance to the building
The key is quickly accessible right next to the entrance or gate, stored in a secure, fully monitored area, and accessible only to authorized personnel.
Emergency access
for fire brigade
and technical services
The key is quickly accessible to emergency services in emergencies and safety-threatening situations, such as fire. The TUBE can be opened remotely.
Protection and security
of distributed facilities
The key is quickly accessible at the facility, stored in a secure, fully monitored area, and accessible only to authorized personnel. There’s no need to return it to the main reception desk or exchange it between employees.
MONITORING
KEY AVAILABILITY
MANY REPUTABLE COMPANIES AND INSTITUTIONS IN POLAND USE THE SAIK TUB
including buildings of banks, institutions, offices, logistics companies and warehouses, enterprises from many industrial sectors, as well as energy facilities.
PRINCIPLE OF OPERATION OF THE DEVICE
STEP I
The user performs first-level authorization using an RFID card or tag, and after the correct procedure, the first front door of the locker opens.
STEP II
The user’s PIN is entered on the internal keypad, representing Level II authorization. Once entered and confirmed, the Level II security door lock is released.
STEP III
After successfully completing these two steps, the glove compartment opens and the key fob lock is released. The key fob can be removed freely and then closed to end the operation. A report of the entire procedure is generated in the database.
EVENT MONITORING, REPORTS AND ALARMS
Every valid and invalid operation is recorded in the database along with the date, exact time, and authorization details. All information is available for review in a generated report. Additionally, notifications are sent to the system administrator. The RC3-class device is difficult to force and is equipped with multiple sensors, so any attempt to force the lock triggers the alarm system and sends alerts to the system administrator.
Advantages of using the device
Key always available 24/7
No need for the presence of the person issuing the keys
Easy key exchange between employees on different shifts
(last to leave – first to arrive)
Key availability for emergency and technical services
Reported and supervised key collection and return
Emergency power supply up to 48 hours
Alarm system, notifications and burglary resistance
Application for main buildings and field facilities of technical infrastructure
Authorized access to the key and building
Easy management of key assignments to employeesw
Intuitive management application and dedicated administration system
Easy expansion with an additional internal key/item cabinet inside the building
Technical specifications

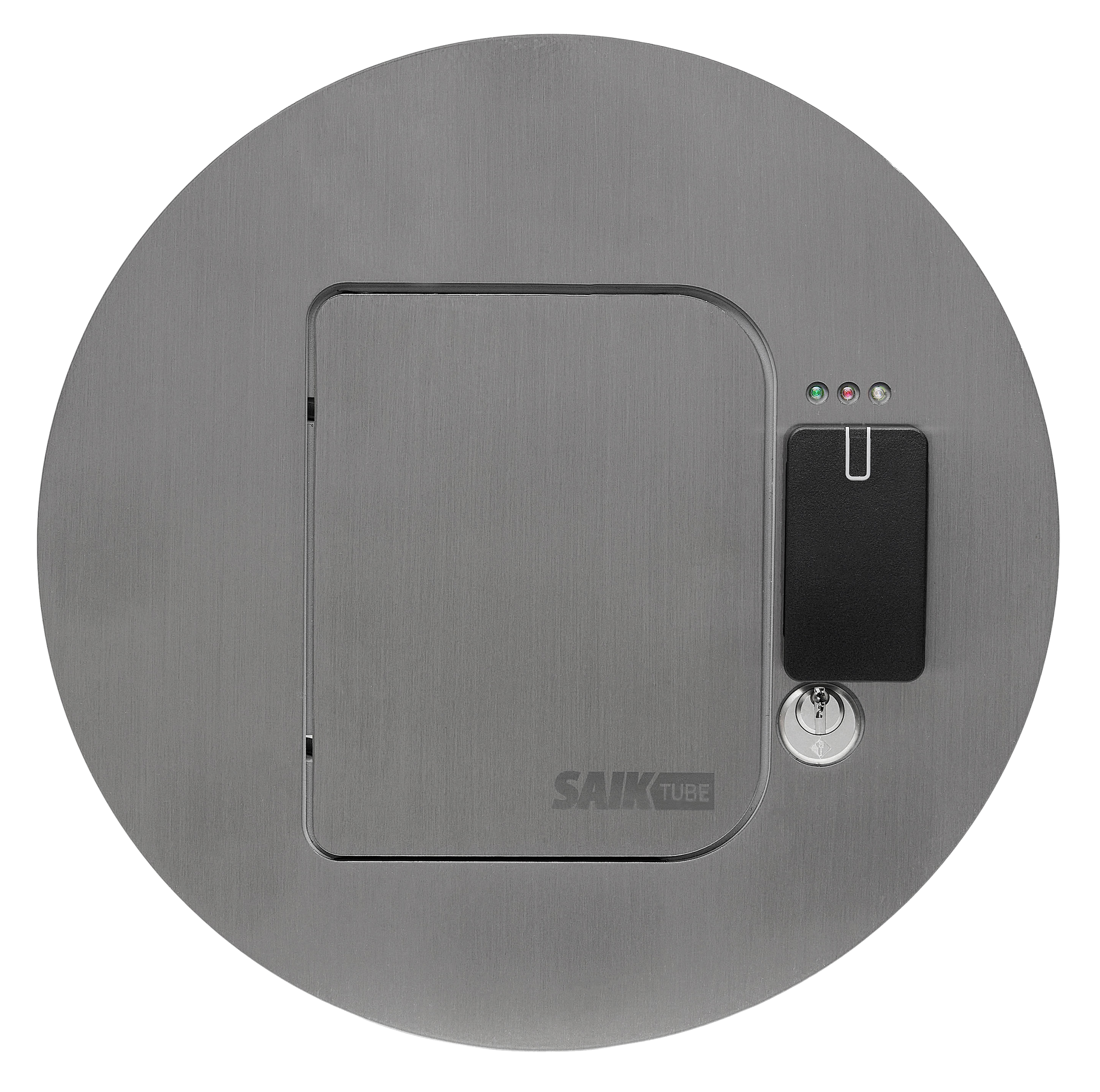

| Construction | stainless steel |
| Number of fob places (keys)* | 1 standard 2 optional |
| Length | 20 cm |
| Outer diameter | 32 cm |
| Mounting hole depth | 25 cm |
| Installation method | external, flush-mounted |

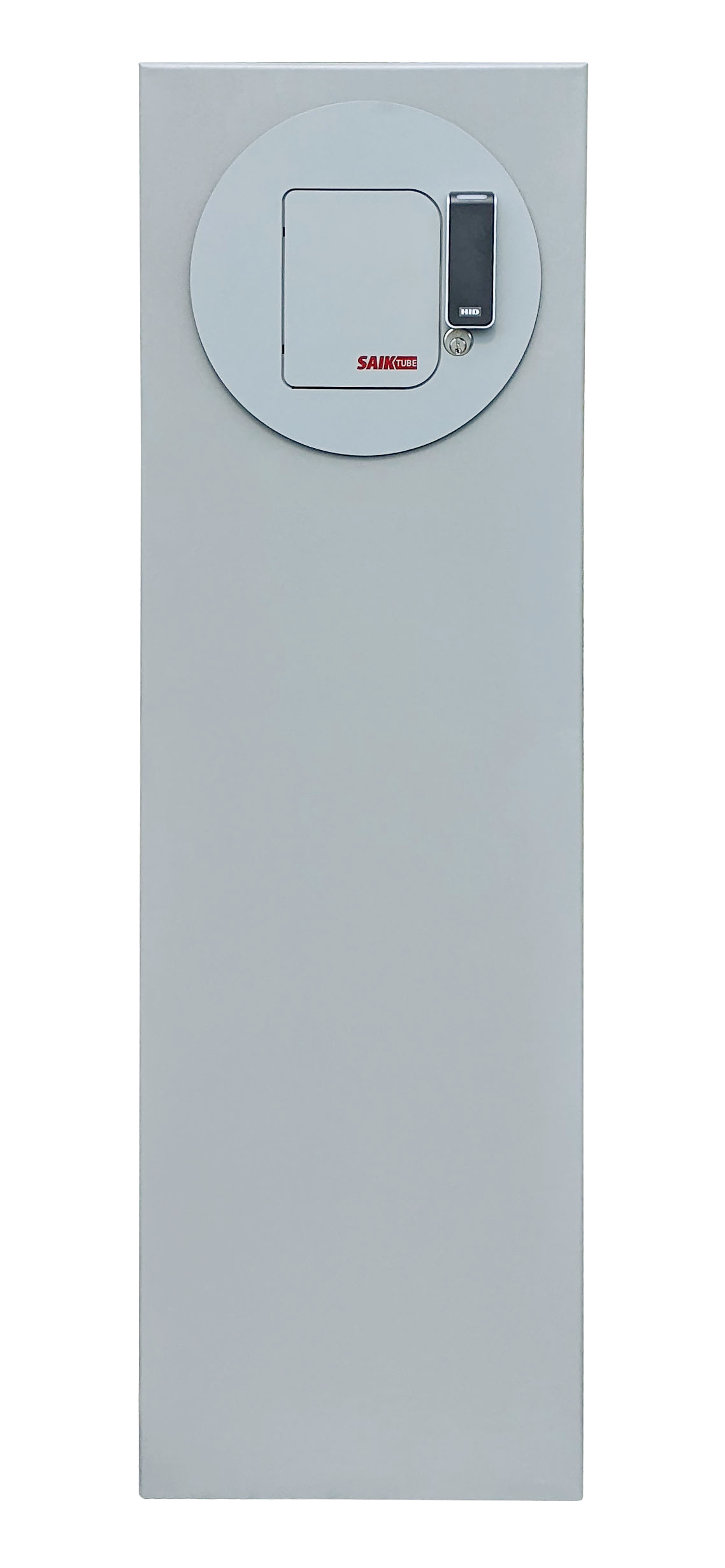

| Freestanding version | YES, on the frame |
| Card reader (first barrier) | any |
| Alphanumeric keyboard (second barrier) | YES |
| Emergency power supply | min. 48h |
| Wall detachment sensor | YES |
| Intrusion sensor | YES |
| Outputs to fire protection and access control systems | YES |
| Full event log | YES |
| Administrative software | YES |
| Reporting software | YES |
| Software for the guard | YES |
| Communication with software | TCP/IP |
| Resistance class according to PN-EN 60529:2003 | RC3 |
| Degree of protection according to PN-EN 60529:2003 | IP 56 |
| Country of production | Poland |
* Steel fob with key – The sturdy steel construction provides additional security for the stored key, which is difficult to separate from the pendant. Three different padlock sizes allow you to store more than one key on the keychain; this can include a complete set of building keys (entrance and several for additional rooms).
x
Optionally, it is possible to make a device with 2 key fobs, then one device can serve 2 separate buildings standing next to each other.
Gallery
Device assembly and personalization
As a standard, the device is mounted in the building wall, flush-mounted, and the cabling is provided from the inside. If this solution proves problematic or if we do not want to damage the building’s facade, an alternative solution is used: a dedicated steel frame reinforced with a small foundation in the case of installation on soft ground..
The device and frame are painted in a standard RAL color to match the building’s facade, company brand, or customer’s taste. Additionally, logos and other text and graphic signatures can be applied to the device according to the customer’s needs.
Distributed objects control
The device is ideal for storing entrance keys to buildings in the field, when staff aren’t permanently present and only a designated employee enters occasionally. The key is always located close to the entrance, so if a designated employee is out in the field and needs to access the building at a given moment, they don’t have to go to the company’s headquarters to collect the key. This streamlines and speeds entry and is also helpful in emergency situations, such as for fire departments or technical services.
Integration with security and access control systems
The SAIK system works well with other popular security systems currently operating in the target building.
Integration with another cabinet
The SAIK TUBE works well with other SAIK devices. If you already have a SAIK locker, the tube locker will be a very good and valuable extension of your entire system. If you only purchase the SAIK TUBE device, you can consider purchasing another SAIK locker in the future. They will work seamlessly within your entire key management system.
SAIK WEB Admin
An intuitive application that allows you to easily manage access for individuals and groups of employees to the master key and building entrance, as well as customize other SAIK keys and lockers operating within a single SAIK system.
Anyone interested in purchasing or with additional questions is welcome to contact us via
the bottom contact form,
by email at handlowy@bte.pl or phone: +48 12 429 36 16
Upon prior arrangement, a presentation of the SAIK TUBE device and other SAIK solutions for secure key and item storage is also possible.
